Neodymium bar magnet in brass body / internal thread

- Ideal for smooth surfaces

Neodymium bar magnet produced with brass body and internal thread. High-quality product in the Excello series that ensures long durability, strength and multiple application possibilities. Ideal for professional holding and gripping applications on smooth surfaces.



  • Efficient gripping abilities
  • Internal thread
  • Tolerance in height up to +0.3/- 0.3 (see specifications)
  • Max temperature: 80 °C
  • North and south pole on the same surface makes bar magnet ideal for smooth surfaces
  • If special enquiries please contact our technical department
  • Part of the Excello product series
Specifications
Material: Neodymium
Surface: Brass body
Max temperatur: 80 °C
Type: Internal thread
Tolerance for art. no. 15200-50: +/- 0.2 in height
Tolerance for Art. No. 15260-70: +/- 0.3 in height
Holding force: 10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm M x L mm Holding force N Price Qty
15200 6 20 M3x5 10
  • €4.25 from 1 pc.
  • €3.50 from 10 pcs.
  • €2.96 from 100 pcs.
  • €2.52 from 1000 pcs.
15210 8 20 M3x5 25
  • €4.35 from 1 pc.
  • €3.64 from 10 pcs.
  • €3.10 from 100 pcs.
  • €2.65 from 1000 pcs.
15220 10 20 M4x7 45
  • €4.90 from 1 pc.
  • €3.98 from 10 pcs.
  • €3.37 from 100 pcs.
  • €2.93 from 1000 pcs.
15230 13 20 M4x7 70
  • €5.27 from 1 pc.
  • €4.32 from 10 pcs.
  • €3.91 from 100 pcs.
  • €3.44 from 1000 pcs.
15240 16 25 M4x8 150
  • €6.43 from 1 pc.
  • €5.48 from 10 pcs.
  • €4.86 from 100 pcs.
  • €4.22 from 1000 pcs.
15250 20 25 M6x6 280
  • €8.57 from 1 pc.
  • €7.62 from 10 pcs.
  • €6.16 from 100 pcs.
  • €5.58 from 1000 pcs.
15260 25 35 M6x8 450
  • €15.65 from 1 pc.
  • €14.35 from 10 pcs.
  • €12.65 from 100 pcs.
  • €11.05 from 1000 pcs.
15270 32 40 M6x6 700
  • €22.04 from 1 pc.
  • €20.14 from 10 pcs.
  • €18.64 from 100 pcs.
  • €14.83 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This Excello bar magnet is produced using a strong neodymium magnet to achieve the high magnetic strengths.



A solid brass body surrounds the magnet and an internal thread is mounted to ensure excellent gripping abilities. The neodymium magnet is enclosed in the brass body in which it lays securely protected. The brass body itself also contributes to the overall magnetic force of the bar magnet.



The bar magnet is part of the Excello series which provides certainty regarding the strength, durability and quality of the product.

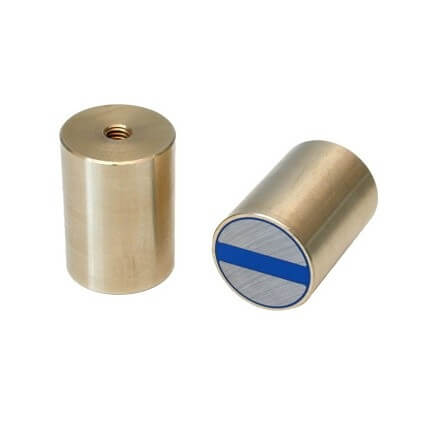

The bar magnet in brass body is easily recognized by its blue stripe down the middle of the magnet. North and south pole are situated on the same surface thanks to the “sandwich” function. This narrow surface makes the bar magnet ideal for smooth surfaces where there is no air gap between the magnet and the surface.



Magnetic strength of the bar magnet

The bar magnet with brass body reaches a very high magnetic force when using the largest dimensions. At a diameter of Ø32 a magnetic strength up to 700 newton is possible. The strength depends on the diameter – please see the complete list of dimensions in the “product overview” and do not hesitate to contact us if a custom-made product is needed.



Dimension

8 different standard dimensions are available on the website. See full list under “Product overview” and contact us if other dimension are required.



Other Excello bar magnets

The neodymium bar magnet is also produced with a full brass body without thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium
Surface Brass body
Max temperatur 80 °C
Type Internal thread
Tolerance for art. no. 15200-50 +/- 0.2 in height
Tolerance for Art. No. 15260-70 +/- 0.3 in height
Holding force 10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
