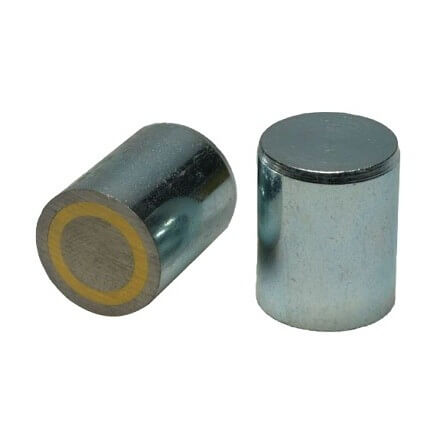

AlNiCo bar magnet in full steel body

- Without thread or hole

These AlNiCo bar magnets are produced with a full steel body with Aluminium-Nickel-Cobalt material as the magnetic holding force. The Excello bar magnet has only one active magnet side and is used for industrial holding applications.


  • Great holding abilities
  • Great magnetic strength – up to 660 N
  • Zinc coating
  • Max temperature: 450 °C
  • If special demands please contact our technical department
  • Tolerance: +0.2 / -0.2
  • Part of the Excello quality series
Specifications
Material: AlNiCo
Surface: Steel body
Max temperature: 450 °C
Coating: Zinc
Type: Full body
Tolerance: +0.2 / -0.2
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm Holding force N Price Qty
15600 6 20 2
  • €4.25 from 1 pc.
  • €3.50 from 10 pcs.
  • €2.82 from 100 pcs.
  • €2.24 from 1000 pcs.
15610 8 20 4
  • €4.35 from 1 pc.
  • €3.61 from 10 pcs.
  • €2.89 from 100 pcs.
  • €2.31 from 1000 pcs.
15620 10 20 8,5
  • €4.49 from 1 pc.
  • €3.67 from 10 pcs.
  • €2.96 from 100 pcs.
  • €2.38 from 1000 pcs.
15630 13 20 12
  • €4.73 from 1 pc.
  • €3.91 from 10 pcs.
  • €3.16 from 100 pcs.
  • €2.59 from 1000 pcs.
15640 16 20 20
  • €4.93 from 1 pc.
  • €4.08 from 10 pcs.
  • €3.40 from 100 pcs.
  • €2.86 from 1000 pcs.
15650 20 25 40
  • €5.58 from 1 pc.
  • €4.93 from 10 pcs.
  • €4.32 from 100 pcs.
  • €3.71 from 1000 pcs.
15660 25 35 60
  • €7.76 from 1 pc.
  • €7.18 from 10 pcs.
  • €6.50 from 100 pcs.
  • €5.88 from 1000 pcs.
15670 32 40 160
  • €14.83 from 1 pc.
  • €13.95 from 10 pcs.
  • €13.16 from 100 pcs.
  • €12.14 from 1000 pcs.
15680 40 50 240
  • €25.20 from 1 pc.
  • €23.67 from 10 pcs.
  • €21.94 from 100 pcs.
  • €20.31 from 1000 pcs.
15690 50 60 400
  • €42.86 from 1 pc.
  • €40.41 from 10 pcs.
  • €38.78 from 100 pcs.
  • €37.31 from 1000 pcs.
15695 63 65 660
  • €71.43 from 1 pc.
  • €69.32 from 10 pcs.
  • €66.67 from 100 pcs.
  • €64.25 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This AlNiCo bar magnet with full steel body holds the advantage of tolerating very high working temperatures. They are often used for industrial applications thanks to the excellent holding abilities. The AlNiCo magnet is enclosed in the steel body where it lays protected from outer impacts. The steel body also increases the overall magnetic force of the bar magnet.



The bar magnet forms part of the Excello quality series that provides certainty regarding the strength and durability of the product.



Magnetic strength for the AlNiCo bar magnet

The magnetic strength is very high for this magnet. Depending on the dimension this bar magnet reaches a strength up to 600 newton for the highest standard dimension. At larger quantities it is possible to produce a large variety of dimensions. Thus, if higher force is needed please contact the technical department.



Dimension

Several dimensions are produced within this model. See the list above.



Other Excello bar magnets

The magnet is also produced in alternative models. See the AlNiCo bar magnet with internal thread and AlNiCo bar magnet with external thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material AlNiCo
Surface Steel body
Max temperature 450 °C
Coating Zinc
Type Full body
Tolerance +0.2 / -0.2
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, Code of Conduct
