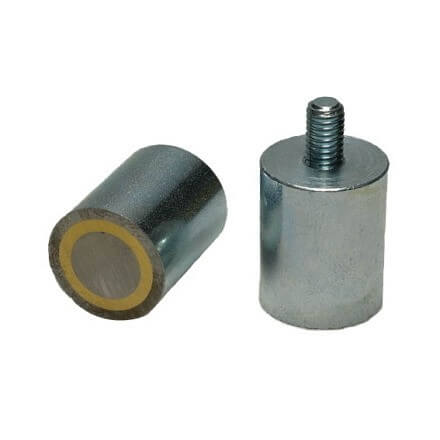

AlNiCo bar magnet in steel body / external thread

- Robust thread

This Excello bar magnet in steel body is produced with AlNiCo magnet and a solid external thread. The AlNiCo bar magnet is characterized by its particularly high working temperatures reaching up to 450°C. Suitable for industrial holding and gripping applications.



  • Zinc coated
  • Great holding and gripping abilities
  • High magnetic strength – up to 660 Newton
  • Tolerance +/- 0.2 mm – depending on the dimension
  • Max working temperature: 450 °C
  • If special requierements please contact our technical department
  • Part of the Excello product series
Specifications
Material: AlNiCo
Surface: Steel body
Max temperature: 450 °C
Coating: Zinc
Type: External thread
Tolerance: +/- 0.2 mm
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm M x L mm Holding force N Price Qty
15423 6 20 M3x7 2
  • €5.17 from 1 pc.
  • €4.08 from 10 pcs.
  • €3.37 from 100 pcs.
  • €2.48 from 1000 pcs.
15424 8 20 M3x7 4
  • €5.31 from 1 pc.
  • €4.22 from 10 pcs.
  • €3.47 from 100 pcs.
  • €2.59 from 1000 pcs.
15425 10 20 M4x8 8,5
  • €5.58 from 1 pc.
  • €4.49 from 10 pcs.
  • €3.54 from 100 pcs.
  • €2.72 from 1000 pcs.
15426 13 20 M4x10 12
  • €5.85 from 1 pc.
  • €4.76 from 10 pcs.
  • €3.78 from 100 pcs.
  • €2.96 from 1000 pcs.
15427 16 20 M4x10 20
  • €6.94 from 1 pc.
  • €5.68 from 10 pcs.
  • €4.49 from 100 pcs.
  • €3.78 from 1000 pcs.
15428 20 25 M6x10 40
  • €7.35 from 1 pc.
  • €6.09 from 10 pcs.
  • €5.00 from 100 pcs.
  • €4.12 from 1000 pcs.
15429 25 35 M6x10 60
  • €10.75 from 1 pc.
  • €9.12 from 10 pcs.
  • €7.89 from 100 pcs.
  • €6.22 from 1000 pcs.
15430 32 40 M8x12 160
  • €18.37 from 1 pc.
  • €15.24 from 10 pcs.
  • €13.20 from 100 pcs.
  • €11.05 from 1000 pcs.
15431 40 50 M8x15 240
  • €29.52 from 1 pc.
  • €26.26 from 10 pcs.
  • €24.35 from 100 pcs.
  • €21.63 from 1000 pcs.
15432 50 60 M10x15 400
  • €47.48 from 1 pc.
  • €43.67 from 10 pcs.
  • €40.68 from 100 pcs.
  • €37.41 from 1000 pcs.
15433 63 65 M12x20 660
  • €85.85 from 1 pc.
  • €79.59 from 10 pcs.
  • €74.69 from 100 pcs.
  • €71.43 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This type of AlNiCo bar magnet in steel body holds the advantage of a solid external thread. This secures an efficient gripping ability. The AlNiCo bar magnet is known for its high working temperatures reaching up to 450 °C.



The bar magnet forms part of the high-quality Excello series that ensures a strong and durable product.



Cylinder shaped bar magnets are characterized by the enclosed magnet (AlNiCo) in the metal body. The magnet is well protected from exterior impacts. The magnet is only magnetic on one side due to the external thread on the other.



Magnetic strength for the AlNiCo bar magnet

This product provides a high magnetic strength and reaches a magnetic force up to 660 newton at the largest dimension. All strengths and prices are shown in the list above.



Dimension

This model with an external thread is available in many different dimensions pending from Ø6 – Ø63 mm. Other dimensions can be produced according to amounts. Please ask in our technical department for further information.

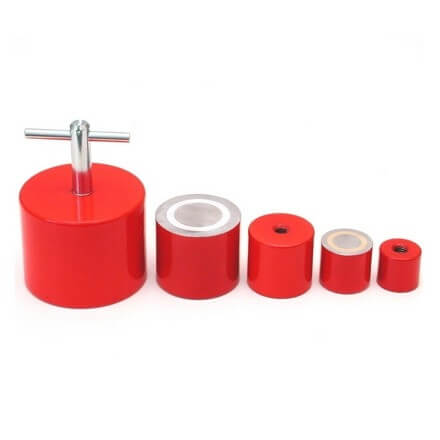

Other Excello bar magnets

The bar magnet is also produced in other models. See the AlniCo bar magnet with full steel body and AlNiCo bar magnet with internal thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material AlNiCo
Surface Steel body
Max temperature 450 °C
Coating Zinc
Type External thread
Tolerance +/- 0.2 mm
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, Code of Conduct
