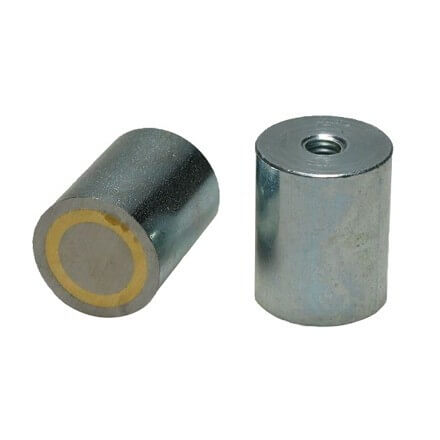

AlNiCo bar magnet in steel body / internal thread

- High working temperature

Excello bar magnet in steel body equipped with AlNiCo magnet and an internal thread. The solid AlNiCo material ensures great holding force and high working temperatures for the product. The AlNiCo bar magnet is ideal for gripping applications within the industrial area thanks to the internal thread.



  • High magnetic strength – up to 660 Newton
  • Internal thread M3 - M12
  • Max working temperature – up to 450 °C
  • Zinc coating
  • Tolerance +0.2 / -0.2
  • If special requirements please contact our technical department
  • Part of the Excello product series
Specifications
Material: AlNiCo
Surface: Steel body
Max temperature: 450 °C
Coating: Zinc
Type: Internal thread
Tolerance: +0.2 / -0.2
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm M x L mm Holding force N Price Qty
15800 6 20 M3x5 2
  • €4.05 from 1 pc.
  • €3.44 from 10 pcs.
  • €2.69 from 100 pcs.
  • €2.21 from 1000 pcs.
15810 8 20 M3x5 4
  • €4.08 from 1 pc.
  • €3.47 from 10 pcs.
  • €2.72 from 100 pcs.
  • €2.24 from 1000 pcs.
15820 10 20 M4x7 8,5
  • €4.35 from 1 pc.
  • €3.67 from 10 pcs.
  • €2.89 from 100 pcs.
  • €2.41 from 1000 pcs.
15830 13 20 M4x7 12
  • €4.66 from 1 pc.
  • €3.95 from 10 pcs.
  • €3.16 from 100 pcs.
  • €2.62 from 1000 pcs.
15840 16 20 M4x5 20
  • €4.90 from 1 pc.
  • €4.18 from 10 pcs.
  • €3.57 from 100 pcs.
  • €3.03 from 1000 pcs.
15850 20 25 M6x7 40
  • €5.99 from 1 pc.
  • €5.27 from 10 pcs.
  • €4.63 from 100 pcs.
  • €3.95 from 1000 pcs.
15860 25 35 M6x9 60
  • €7.76 from 1 pc.
  • €6.94 from 10 pcs.
  • €6.29 from 100 pcs.
  • €5.75 from 1000 pcs.
15870 32 40 M8x9 160
  • €12.65 from 1 pc.
  • €11.84 from 10 pcs.
  • €10.75 from 100 pcs.
  • €9.93 from 1000 pcs.
15871 40 50 M8x9 240
  • €25.71 from 1 pc.
  • €23.81 from 10 pcs.
  • €22.07 from 100 pcs.
  • €20.58 from 1000 pcs.
15872 50 60 M10x12 400
  • €40.41 from 1 pc.
  • €38.78 from 10 pcs.
  • €37.14 from 100 pcs.
  • €36.05 from 1000 pcs.
15873 63 65 M12x14 660
  • €72.79 from 1 pc.
  • €71.43 from 10 pcs.
  • €68.16 from 100 pcs.
  • €65.99 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This Excello bar magnet is produced with internal thread providing the product with a particularly efficient gripping ability. A solid AlNiCo magnet is used to ensure the high magnetic strength and the high working temperatures. The AlNiCo magnet is enclosed in the steel body where it lays securely protected. The bar magnet is characterized by having only one active magnetic side.



The bar magnet is part of the Excello quality series which provides certainty regarding the strength, durability and overall quality of the product.



Magnetic strength

The holding force of this AlNiCo bar magnet with internal thread is very high due to the Aluminium-Nickel-Cobalt material. The different magnetic strengths can be seen in the list above.



Dimension

The product comes in several different magnet dimensions. It is possible to compare dimension with magnetic strength and prices above. If other dimensions are required please contact our sales department for the possibility of a custom-made product (according to required amounts).



Other Excello bar magnets

The magnet is also produced as AlNiCo bar magnet with a full steel body and AlNico bar magnet with external thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material AlNiCo
Surface Steel body
Max temperature 450 °C
Coating Zinc
Type Internal thread
Tolerance +0.2 / -0.2
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
