Neodymium bar magnet – full brass body

-For smooth surfaces

Excello bar magnet produced with strong neodymium magnet that is enclosed in the brass body. The bar magnet is developed for industrial use and is ideal for applications on smooth surfaces. Strong holding force.



  • Strong holding force – reaches up to 700 Newton
  • Full brass body - no thread
  • Narrow surface between poles makes the product ideal for smooth surfaces
  • North and south pole on same magnetic surface (”sandwich”-model)
  • Tolerance in height varies +0.3/- 0.3 (see specifications)
  • Max temperature: 80 °C
  • Part of the Excello product series
Specifications
Material: Neodymium
Surface: Brass body
Max temperature: 80 °C
Type: Full body
Tolerance for art. no. 15000-50: +/- 0.2 in height
Tolerance for art. no. 15060-70: +/- 0.3 in height
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm Holding force N Price Qty
15000 6 20 10
  • €4.80 from 1 pc.
  • €3.74 from 10 pcs.
  • €2.82 from 100 pcs.
  • €2.24 from 1000 pcs.
15010 8 20 25
  • €5.00 from 1 pc.
  • €3.98 from 10 pcs.
  • €3.03 from 100 pcs.
  • €2.45 from 1000 pcs.
15020 10 20 45
  • €5.61 from 1 pc.
  • €4.76 from 10 pcs.
  • €3.71 from 100 pcs.
  • €2.76 from 1000 pcs.
15030 13 20 70
  • €6.43 from 1 pc.
  • €5.17 from 10 pcs.
  • €4.25 from 100 pcs.
  • €3.16 from 1000 pcs.
15040 16 20 150
  • €6.97 from 1 pc.
  • €5.71 from 10 pcs.
  • €5.07 from 100 pcs.
  • €4.25 from 1000 pcs.
15050 20 25 280
  • €8.33 from 1 pc.
  • €6.94 from 10 pcs.
  • €6.02 from 100 pcs.
  • €5.20 from 1000 pcs.
15060 25 35 450
  • €12.52 from 1 pc.
  • €11.73 from 10 pcs.
  • €10.51 from 100 pcs.
  • €9.49 from 1000 pcs.
15070 32 40 700
  • €23.40 from 1 pc.
  • €22.45 from 10 pcs.
  • €19.18 from 100 pcs.
  • €16.50 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

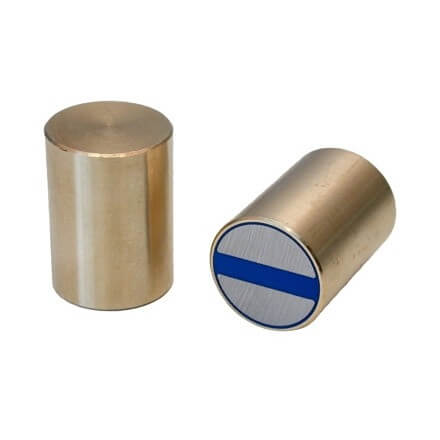

This characteristic Excello bar magnet is produced with neodymium magnet which is also recognizable via the blue color on the active magnet surface. The full brass body serves as protection for the bar magnet as well as it increases the overall magnetic force of the product.



The bar magnet forms part of the Excello quality series for extra strength, reliability and durability of the product.



Key characteristics of this bar magnet is the fact that both north and south pole is placed on the same magnetic surface creating a “sandwich”. The narrow surface between the poles makes the bar magnet highly suitable for holding applications on smooth surfaces (no air gap must be present between magnet and surface).



Magnetic strength for the neodymium bar magnet

The magnetic strength reaches up to 700 newton at the largest dimension. The magnetic strength depends on the diameter of the magnet – please see the list above for comparison.



Dimension

This neodymium bar magnet in full brass body is produced in several dimensions. See a complete list of the models above.



Other Excello bar magnets

The bar magnet in brass body is also produced with internal thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium
Surface Brass body
Max temperature 80 °C
Type Full body
Tolerance for art. no. 15000-50 +/- 0.2 in height
Tolerance for art. no. 15060-70 +/- 0.3 in height
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
