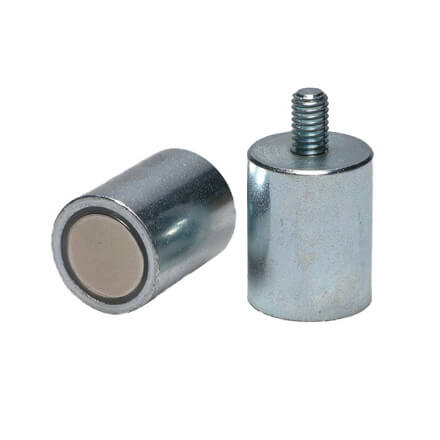

Neodymium bar magnets in steel body / external thread

-Robust thread

Excello bar magnet in steel body equipped with external thread in solid quality. High magnetic strength makes the bar magnet ideal for gripping applications within the industrial sector. A strong neodymium magnet is enclosed in the steel body providing the magnetic force.



  • Efficient holding and gripping abilities
  • External thread M3 – M12
  • Zinc coated
  • Tolerance up to +/- 0.2 mm – depending on the dimension
  • Note the high magnetic force (up to 1700 Newton)
  • Part of the Excello product series
  • Max temperature 80 °C
  • If special requests please contact our technical department
Specifications
Material: Neodymium
Surface: Steel body
Max temperature: 80 °C
Type: External thread
Thread: M3 – M12 – depending on the type
Tolerance: +/- 0.2 mm
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm M x L mm Holding force N Price Qty
15410 6 20 M3x7 6
  • €3.78 from 1 pc.
  • €2.55 from 100 pcs.
  • €2.14 from 1000 pcs.
15411 8 20 M3x7 12
  • €3.88 from 1 pc.
  • €2.65 from 100 pcs.
  • €2.24 from 1000 pcs.
15412 10 20 M4x8 24
  • €4.01 from 1 pc.
  • €2.82 from 100 pcs.
  • €2.38 from 1000 pcs.
15413 13 20 M4x8 60
  • €4.18 from 1 pc.
  • €2.96 from 100 pcs.
  • €2.54 from 1000 pcs.
15414 16 20 M4x10 90
  • €4.42 from 1 pc.
  • €3.27 from 100 pcs.
  • €2.89 from 1000 pcs.
15415 20 25 M6x10 135
  • €5.51 from 1 pc.
  • €4.22 from 100 pcs.
  • €3.91 from 1000 pcs.
15416 25 35 M6x10 190
  • €6.84 from 1 pc.
  • €5.68 from 100 pcs.
  • €5.41 from 1000 pcs.
15417 32 40 M8x12 340
  • €11.22 from 1 pc.
  • €9.25 from 100 pcs.
  • €8.33 from 1000 pcs.
15418 40 50 M8x15 700
  • €22.45 from 1 pc.
  • €20.20 from 100 pcs.
  • €17.48 from 1000 pcs.
15419 50 60 M10x15 1000
  • €30.75 from 1 pc.
  • €26.53 from 100 pcs.
  • €25.17 from 1000 pcs.
15420 63 65 M12x20 1700
  • €46.26 from 1 pc.
  • €41.50 from 100 pcs.
  • €37.41 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

The Excello bar magnet in steel body with external thread is a high-quality product solely produced by “pure” raw materials. This ensures an always accurate magnetic strength and a solid durability. The neodymium magnet enclosed in this bar magnet provides the excellent magnetic abilities.



The bar magnet is part of the Excello quality series for extra durability and strength.



Thanks to the external thread the bar magnet in steel body is highly suitable for holding and gripping applications. The bar magnet is ideal for projects where there is a risk of small air gaps occurring between magnet and surface (max. 0.2-0.3 mm).



Magnetic strength for the neodymium bar magnet

The neodymium material ensures a magnetic strength up to 1700 newton. The holding force increases with the diameter of the bar magnet. Please see all dimensions, prices and holding forces above.



Dimensions

The neodymium bar magnet with thread is produced in many dimensions to accommocate almost every need. See the product overview above for a complete comparison of dimensions and strength. The bar magnet can also be produced specifically according to required dimension. Please contact us for further information.



Other Excello bar magnets

See the neodymium bar magnets in steel with internal thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium
Surface Steel body
Max temperature 80 °C
Type External thread
Thread M3 – M12 – depending on the type
Tolerance +/- 0.2 mm
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
