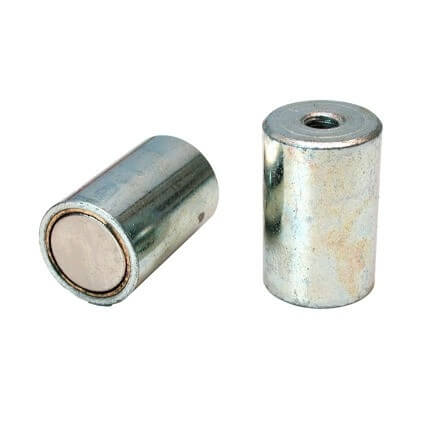

Neodymium bar magnets in steel body / internal thread

- Extra high strength

These strong Excello bar magnets in neodymium are produced with internal thread and a steel body. The internal thread ensures excellent gripping abilities and the strong neodymium magnet enclosed in the metal body guarantees the high magnetic strength.



  • High magnetic strength – up to 1700 Newton (approx. 170 kilos)
  • Internal thread M3 – M12 depending on the model
  • Excellent gripping and holding abilities for this bar magnet
  • Tolerance +0.2 / -0.2
  • Max temperature 80 °C
  • If special enquiry regarding dimension or magnet strength please contact our sales department
Specifications
Material: Neodymium
Surface: Metal body
Max temperature: 80 °C
Type: Internal thread
Thread: M3 – M12 – depending on the type
Tolerance: +0.2 / -0.2
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm M x L mm Holding force N Price Qty
15100 6 20 M3x5 6
  • €4.15 from 1 pc.
  • €2.79 from 10 pcs.
  • €2.52 from 100 pcs.
  • €2.07 from 1000 pcs.
15110 8 20 M3x5 12
  • €4.32 from 1 pc.
  • €2.96 from 10 pcs.
  • €2.62 from 100 pcs.
  • €2.24 from 1000 pcs.
15120 10 20 M4x7 24
  • €4.46 from 1 pc.
  • €2.99 from 10 pcs.
  • €2.76 from 100 pcs.
  • €2.41 from 1000 pcs.
15130 13 20 M4x7 60
  • €4.62 from 1 pc.
  • €3.16 from 10 pcs.
  • €2.92 from 100 pcs.
  • €2.58 from 1000 pcs.
15140 16 20 M4x7 90
  • €5.00 from 1 pc.
  • €3.50 from 10 pcs.
  • €3.27 from 100 pcs.
  • €2.82 from 1000 pcs.
15150 20 25 M6x9 135
  • €6.22 from 1 pc.
  • €5.41 from 10 pcs.
  • €4.86 from 100 pcs.
  • €4.08 from 1000 pcs.
15160 25 35 M6x9 190
  • €6.94 from 1 pc.
  • €6.19 from 10 pcs.
  • €5.61 from 100 pcs.
  • €5.24 from 1000 pcs.
15170 32 40 M8X12 340
  • €9.93 from 1 pc.
  • €9.08 from 10 pcs.
  • €8.47 from 100 pcs.
  • €8.10 from 1000 pcs.
15180 40 50 M8x12 700
  • €20.27 from 1 pc.
  • €18.40 from 10 pcs.
  • €17.04 from 100 pcs.
  • €15.58 from 1000 pcs.
15181 50 60 M10x12 1000
  • €27.62 from 1 pc.
  • €26.53 from 10 pcs.
  • €24.76 from 100 pcs.
  • €22.99 from 1000 pcs.
15182 63 65 M12x14 1700
  • €44.76 from 1 pc.
  • €41.77 from 10 pcs.
  • €39.32 from 100 pcs.
  • €37.55 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This Excello bar magnet with internal thread is produced with a neodymium magnet enclosed in the metal body. The magnet provides the high magnetic strength on only one side (active magnetic side). The rest of the bar magnet is surrounded by metal which enables different types of thread. The thread facilitates easy mounting of the magnet and the magnetic abilities makes adjusting and moving of the magnet an easy task.



The bar magnet is part of the Excello quality series that provides certainty regarding accurate strength, long durability and precise tolerances.



The steel body posseses two additional functions; to serve as protective device against direct blows on the magnet and to increase the overall magnetic effect of the bar magnet. The bar magnet in steel body is ideal for applications where there is the risk of appearing a small air gap between magnet and surface (max 0,2-0,3 mm).



Magnetic strength for the Excello bar magnet

The magnetic strength of this neodymium bar magnet in steel body depends on the actual size of the magnet. As a standard the bar magnets reaches a magnetic strength between 6 – 1700 Newton. The right strength will always depend on the project at hand and the precise application. The high magnetic force is provided by the rare earth material neodymium which provides the strongest permanent magnets in the world.



Dimension

The neodymium bar magnet is produced in several dimensions. Please see the overview for a complete list of prices, dimensions, etc.



Other bar magnets

Please also see the bar magnet in steel body with external thread.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium
Surface Metal body
Max temperature 80 °C
Type Internal thread
Thread M3 – M12 – depending on the type
Tolerance +0.2 / -0.2
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
