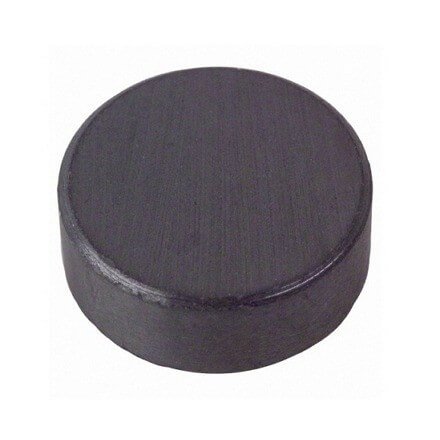

Ferrite disc magnets

-Round ceramic magnets

These ferrite disc magnets are resistant towards corrosion and the magnets have a relatively high magnetic strength. The ceramic magnet offers many application possibilities and is often used inside door keepers, engines, tools, toys etc.



  • Ferrite disc magnets are magnetized axially as a standard but can also be produced with radial dual pole or multipole.
  • Comes in isotropic and anisotropic versions
  • Max temperature: 250 °C
  • Tolerance Ø: + 0.5 / - 0.6 mm
  • Tolerancen H: + 0.3 / - 0.2 mm
Specifications
Material: Ferrite
Max temperature: 250 °C
Quality grade: 26/22, 28/16, 26/24, 28/26
Tolerance for D: + 0.5 / - 0.6 mm
Tolerance for H: + 0.3 / - 0.2 mm
Magnetisation: Axial by default
Type: Isotropic / anisotropic
Holding force: 10 Newton is approx. 1 kg.
Certifications: RoHS, REACH, Larko Code of Conduct
100,00 kr
Models
Art. no. D mm H mm Quality Holding force N Price Qty
5700 8 4 26/22 1,7
  • €0.91 from 10 pcs.
  • €0.67 from 100 pcs.
  • €0.41 from 1000 pcs.
  • €0.31 from 5000 pcs.
5720 10,7 4 26/22 2,5
  • €0.94 from 10 pcs.
  • €0.70 from 100 pcs.
  • €0.51 from 1000 pcs.
  • €0.40 from 5000 pcs.
5730 13,6 3,9 26/22 3,5
  • €0.99 from 10 pcs.
  • €0.75 from 100 pcs.
  • €0.61 from 1000 pcs.
  • €0.44 from 5000 pcs.
5740 17,2 5,3 26/22 4
  • €1.09 from 10 pcs.
  • €0.85 from 100 pcs.
  • €0.70 from 1000 pcs.
  • €0.57 from 5000 pcs.
5750 20 6 26/22 6
  • €1.19 from 10 pcs.
  • €0.95 from 100 pcs.
  • €0.76 from 1000 pcs.
  • €0.65 from 5000 pcs.
5760 22 6 26/22 7,5
  • €1.26 from 10 pcs.
  • €1.02 from 100 pcs.
  • €0.82 from 1000 pcs.
  • €0.68 from 5000 pcs.
5770 28 6 26/22 10
  • €1.33 from 10 pcs.
  • €1.09 from 100 pcs.
  • €0.88 from 1000 pcs.
  • €0.74 from 5000 pcs.
5780 30 6 28/16 11
  • €1.36 from 10 pcs.
  • €1.12 from 100 pcs.
  • €0.95 from 1000 pcs.
  • €0.78 from 5000 pcs.
5790 36 6,5 26/22 15
  • €1.59 from 10 pcs.
  • €1.14 from 100 pcs.
  • €0.97 from 1000 pcs.
  • €0.80 from 5000 pcs.
5800 40 7 28/16 19
  • €1.70 from 10 pcs.
  • €1.26 from 100 pcs.
  • €1.09 from 1000 pcs.
  • €0.92 from 5000 pcs.
5810 45 8,5 26/22 22
  • €1.80 from 10 pcs.
  • €1.36 from 100 pcs.
  • €1.16 from 1000 pcs.
  • €0.99 from 5000 pcs.
5820 51 8,4 26/22 24
  • €2.18 from 10 pcs.
  • €1.63 from 100 pcs.
  • €1.29 from 1000 pcs.
  • €1.16 from 5000 pcs.
5830 56 12 28/16 29
  • €2.59 from 10 pcs.
  • €2.04 from 100 pcs.
  • €1.73 from 1000 pcs.
  • €1.56 from 5000 pcs.
5840 70 15 26/24 71
  • €5.24 from 10 pcs.
  • €4.63 from 100 pcs.
  • €3.88 from 1000 pcs.
  • €3.37 from 5000 pcs.
5850 87 18 26/22 85
  • €11.84 from 10 pcs.
  • €9.80 from 100 pcs.
  • €7.76 from 1000 pcs.
  • €6.70 from 5000 pcs.
5860 107 21 28/26 100
  • €25.17 from 10 pcs.
  • €23.81 from 100 pcs.
  • €20.75 from 1000 pcs.
  • €18.84 from 5000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

Ferrite disc magnets are round ceramic magnets that are highly resistant against corrosion. Ferrite magnets are quite inexpensive due to the low material costs which makes this magnet very interesting for many industries. They are well known for their high tolerances regarding working temperature which can reach up to 250 degrees Celcius.



We also produce ferrite block magnets and ferrite ring magnets.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrite
Max temperature 250 °C
Quality grade 26/22, 28/16, 26/24, 28/26
Tolerance for D + 0.5 / - 0.6 mm
Tolerance for H + 0.3 / - 0.2 mm
Magnetisation Axial by default
Type Isotropic / anisotropic
Holding force 10 Newton is approx. 1 kg.
Certifications RoHS, REACH, Larko Code of Conduct
