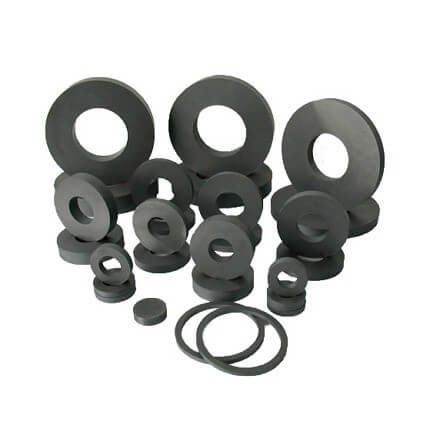

Ferrite ring magnets

-With / without countersunk

Ferrite ring magnets are raw disc magnets produced with a hole in the centre. Ferrite ring magnets have a fairly high magnetic strength generally speaking and one of their major characteristics is the resistance against corrosion. Ceramic ring magnets provide multiple application possiblities – such as in engines, separators, door keepers, tools etc.



  • Ring magnets in ferrite comes with/without countersunk hole
  • Magnetized axially in standard range but can also be produced with radial dual pole or multipole
  • Ring magnets comes in isotropic and anisotropic versions
  • Max temperature: 250 °C
  • Tolerance D: + 0.5 / - 0.8 mm
  • Tolerancen d: +/- 0.5 mm
  • Tolerancen H: +/- 0.1 mm
Specifications
Material: Ferrite
Max temp.: 250 °C
Grade: 26/22, 28/26, 24/23
Tolerance for D: + 0.5 / - 0.8 mm
Tolerance for d: +/- 0.5 mm
Tolerance for H: +/- 0.1 mm
Magnetization: Axial by default
Type: Isotropic / anisotropic
Holding force: 10 Newton ~ 1 kg
Certifications: RoHS, Reach, Code of Conduct
100,00 kr
Models
Art. no. D mm H mm d mm Countersunk Quality Holding force N Price Qty
5400 13 3,9 3,5 Yes 26/22 2,5
  • €1.12 from 10 pcs.
  • €0.82 from 100 pcs.
  • €0.65 from 1000 pcs.
  • €0.54 from 5000 pcs.
5410 17,2 5,3 4,1 Yes 26/22 5
  • €1.29 from 10 pcs.
  • €1.09 from 100 pcs.
  • €0.78 from 1000 pcs.
  • €0.68 from 5000 pcs.
5420 21,8 6 5,5 Yes 28/16 8,5
  • €1.36 from 10 pcs.
  • €1.12 from 100 pcs.
  • €0.82 from 1000 pcs.
  • €0.75 from 5000 pcs.
5430 28 6 5,5 Yes 24/23 13
  • €1.39 from 10 pcs.
  • €1.22 from 100 pcs.
  • €0.85 from 1000 pcs.
  • €0.78 from 5000 pcs.
5440 35,5 6,5 5,5 Yes 28/16 18
  • €1.56 from 10 pcs.
  • €1.33 from 100 pcs.
  • €0.99 from 1000 pcs.
  • €0.88 from 5000 pcs.
5450 40 7,5 19 No 26/22 26
  • €1.46 from 10 pcs.
  • €1.33 from 100 pcs.
  • €0.99 from 1000 pcs.
  • €0.85 from 5000 pcs.
5460 45 8,5 22 No 26/22 28
  • €1.70 from 10 pcs.
  • €1.43 from 100 pcs.
  • €1.12 from 1000 pcs.
  • €1.05 from 5000 pcs.
5470 51 9 24 No 26/22 30
  • €2.31 from 10 pcs.
  • €1.90 from 100 pcs.
  • €1.60 from 1000 pcs.
  • €1.22 from 5000 pcs.
5480 55 12 24 No 24/16 35
  • €2.99 from 10 pcs.
  • €2.48 from 100 pcs.
  • €2.04 from 1000 pcs.
  • €1.97 from 5000 pcs.
5495 70 15 15 No 26/22 75
  • €6.80 from 10 pcs.
  • €6.05 from 100 pcs.
  • €4.85 from 1000 pcs.
  • €4.08 from 5000 pcs.
5500 72 8 32 No 24/23 32
  • €6.33 from 10 pcs.
  • €5.62 from 100 pcs.
  • €4.47 from 1000 pcs.
  • €3.79 from 5000 pcs.
5520 86 18 34 No 26/22 106
  • €13.06 from 10 pcs.
  • €11.59 from 100 pcs.
  • €10.27 from 1000 pcs.
  • €9.32 from 5000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

Ferrite ring magnets are circular magnets with a center hole. Ferrite magnets are well known for their high temperature tolerances which expands the application possibilities for companies within the heavy industrial sector. For many years ferrite magnets have been used in the industrial sector due to their good resistance against demagnetization, excellent corrosion resistance and low cost prices.

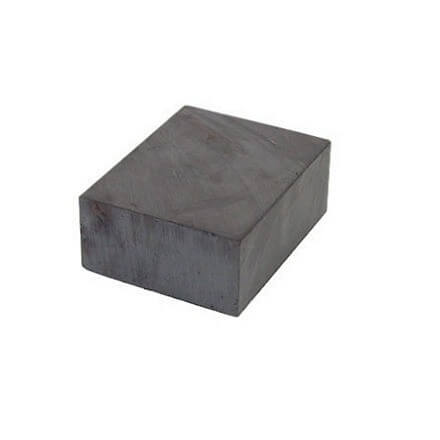

These magnets are also produced as ferrite disc magnets and ferrite block magnets.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrite
Max temp.  250 °C
Grade 26/22, 28/26, 24/23
Tolerance for D + 0.5 / - 0.8 mm
Tolerance for d +/- 0.5 mm
Tolerance for H +/- 0.1 mm
Magnetization Axial by default
Type Isotropic / anisotropic
Holding force 10 Newton ~ 1 kg
Certifications RoHS, Reach, Code of Conduct
