Magnetic catch - thread

- For incorporation

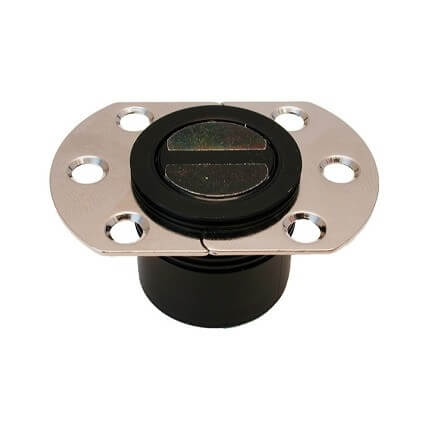

This magnetic door catch  is produced with thread and is ideal for being built into primarily wooden doors. The door catch is of solid quality and has great holding force thanks to the neodymium magnet placed in the bottom.



  • Built-in depth: 15 – 25 mm
  • Thread makes it possible to adjust the distance to the steel plate
  • Mounting kit not included (2 mounting plates with bore and counterbore + screws
  • It’s possible to acquire additional steel plates – either with adhesive or bore
Specifications
Magnet: Neodymium
Surface: Metal / stainless steel
Dimension: Ø26 x 26 mm
Holding force: 105 Newton (10 Newton ~ 1 kg.)
Build-in depth: 15 – 25 mm
Mounting kit: Not included
Max temperature: 60 °C
Certifications: RoHS, REACH, PAC free
100,00 kr
Models
Art. no. Ø mm H mm Newton N Mounting kit Price Qty
55500 26 26 105 Ekskl.
  • €17.07 from 1 pc.
  • €12.99 from 10 pcs.
  • €10.27 from 100 pcs.
55515 26 26 105 Inkl.
  • €21.46 from 1 pc.
  • €16.02 from 10 pcs.
  • €12.93 from 100 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This magnetic door catch makes it possible to have an invisible door holding function. The magnetic door holder can be mounted into the door leaf or outside. The thread ensures that the distance to the steel plate can be adjusted to accomodate almost every need.



Magnetic strength for the magnetic catch

The holding force of this magnetic catch with thread is approximately 15 newton. 10 N corresponds with 1 kg.



Dimension

The dimension for the magnetic catch is Ø26 x 26 mm with a build-in height of 15 – 25 mm.



Other magnetic door catches

Several magnetic door catches are in our range. See also the rubber model - magnetic catch or the cylindrical door catch.

Specifications
Specifications
Magnet Neodymium
Surface Metal / stainless steel
Dimension Ø26 x 26 mm
Holding force 105 Newton (10 Newton ~ 1 kg.)
Build-in depth 15 – 25 mm
Mounting kit Not included
Max temperature 60 °C
Certifications RoHS, REACH, PAC free
