Magnetic filter bars for filtration - Internal thread / Ferrite

- Stainless steel

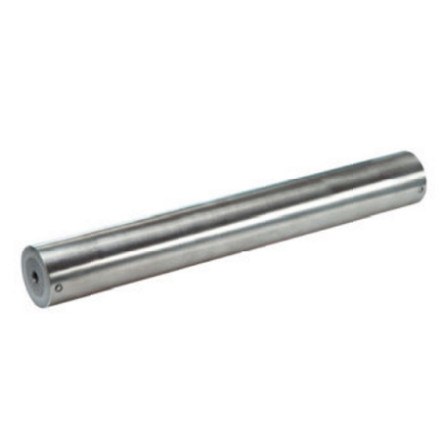

Solid magnetic filter bars for filtration of metal particles and shavings. The filter bars are made with a center of ferrite, making them temperature resistant up to 200°C. The magnetic bars have a stainless steel housing and are as a standard made for dry environments. It is possible to make them suitable for humid and wet environments by welding the ends. The smooth stainless steel housing makes it easy to clean either by wiping down or with air pressure.

  • D40 mm
  • Magnetic field: 30mm
  • Many different lenghts
  • Thread M8
  • Internal thread in both ends
  • Ask the sales department when needed in humid/wet environments
  • Other types of thread and lenghts are possible at larger quantity
  • Is produced by order
Specifications
Magnet: Ferrite
Surface: Stainless steel
Max temperature: 200 °C
Type: Internal thread
Thread: M8x8
Magnetic flux density: 130 mT (milliTesla)
Certifications: RoHS, REACH, Code of Conduct, UV resistance, SSNT 720h.
100,00 kr
SIZES AND VARIANTS
Art. no. D mm L mm M x L mm Temperature Price (Excl. VAT.) Qty
47230 40 100 M8x8 200
  • €143.30 from 1 pc.
  • €124.64 from 5 pcs.
47240 40 150 M8x8 200
  • €167.29 from 1 pc.
  • €144.63 from 5 pcs.
47250 40 200 M8x8 200
  • €193.29 from 1 pc.
  • €166.63 from 5 pcs.
47260 40 250 M8x8 200
  • €214.61 from 1 pc.
  • €189.29 from 5 pcs.
47270 40 300 M8x8 200
  • €228.61 from 1 pc.
  • €201.95 from 5 pcs.
47280 40 350 M8x8 200
  • €241.94 from 1 pc.
  • €215.28 from 5 pcs.
47290 40 400 M8x8 200
  • €252.60 from 1 pc.
  • €227.28 from 5 pcs.
47300 40 450 M8x8 200
  • €265.27 from 1 pc.
  • €239.94 from 5 pcs.
47310 40 500 M8x8 200
  • €283.93 from 1 pc.
  • €258.60 from 5 pcs.
47320 40 550 M8x8 200
  • €296.59 from 1 pc.
  • €271.93 from 5 pcs.
47330 40 600 M8x8 200
  • €314.59 from 1 pc.
  • €289.26 from 5 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

With these robust magnetic filter bars, you are able to collect unwanted metal shavings and particles, so they do not get further into your system or installation. The magnetic bars in ferrite are ideal for use within installations containing wood or plastic. The filter bars are produced by order. If you need a larger quantity, you are able to get them custom-made e.g. with another length or thread so it matches your application. It is also possible to make the bars suitable for managing higher temperatures up to 350°C.


Magnetic filter bars for filtration increases the lifetime

With Larko's magnetic filter bars for filtration, you increase the lifetime of your system, and you prevent unnecessary and expensive downtime. The filter bars are an essential and reliable device for all installations where unwanted metal particles must not be carried further around the system.


The magnetic flux density is measured in mT (milliTesla). 1 mT is 10 Gauss.


Contact us for more information and possibilities at post@larkomagnet.com or +45 39654800.

Specifications
Specifications
Magnet Ferrite
Surface Stainless steel
Max temperature 200 °C
Type Internal thread
Thread M8x8
Magnetic flux density 130 mT (milliTesla)
Certifications RoHS, REACH, Code of Conduct, UV resistance, SSNT 720h.
