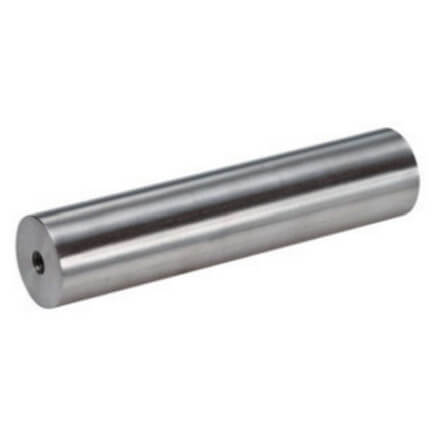

Magnetic filter bars for filtration - internal thread / Neodymium

- Stainless steel

Strong magnetic filter bars containing neodymium for filtration of metal particles and shavings. The filter bars simply separate and collect metallic elements from non-metallic material. Thanks to the smooth stainless steel housing, it is easy to remove the collected metal parts from the bar after use (either wiping it of or by air pressure). The magnetic filter bars can as a standard be used in dry environments for example wood, plastic etc. It is possible to have the ends sealed and welded to make the bar suitable for humid and wet environments.

  • Long durability
  • Internal thread in both ends
  • D22 + D25mm
  • Magnetic field: 30mm
  • Different lengths
  • For dry environments (ask when needed in humid/wet environment)
  • Other lengths, types of thread etc. is possible when larger quantity needed
  • Is produced by order
  • Contact the sales department if the bar is getting in contact with food as this requires another type of stainless steel
Specifications
Magnet: Neodymium
Surface: Stainless steel
Max temperature: 80 °C
Type: Internal thread
Thread: M6x6
Magnetic flux density: 600 mT (milliTesla)
Certifications: RoHS, REACH, Code of Conduct, UV resistance, SSNT 720h.
100,00 kr
SIZES AND VARIANTS
Art. no. D mm L mm MxL Temperature Price (Excl. VAT.) Qty
47010 22 100 M6x6 80
  • €123.30 from 1 pc.
  • €104.64 from 5 pcs.
47020 22 150 M6x6 80
  • €145.30 from 1 pc.
  • €125.97 from 5 pcs.
47030 22 200 M6x6 80
  • €164.63 from 1 pc.
  • €141.96 from 5 pcs.
47040 22 250 M6x6 80
  • €179.96 from 1 pc.
  • €156.63 from 5 pcs.
47050 22 300 M6x6 80
  • €199.28 from 1 pc.
  • €172.62 from 5 pcs.
47060 22 350 M6x6 80
  • €219.95 from 1 pc.
  • €193.29 from 5 pcs.
47070 22 400 M6x6 80
  • €232.61 from 1 pc.
  • €208.61 from 5 pcs.
47080 22 450 M6x6 80
  • €248.60 from 1 pc.
  • €224.61 from 5 pcs.
47090 22 500 M6x6 80
  • €262.60 from 1 pc.
  • €239.27 from 5 pcs.
47100 22 550 M6x6 80
  • €279.26 from 1 pc.
  • €255.27 from 5 pcs.
47110 22 600 M6x6 80
  • €295.26 from 1 pc.
  • €272.60 from 5 pcs.
47120 25 100 M6x6 80
  • €132.63 from 1 pc.
  • €113.97 from 5 pcs.
47130 25 150 M6x6 80
  • €153.30 from 1 pc.
  • €134.63 from 5 pcs.
47140 25 200 M6x6 80
  • €176.62 from 1 pc.
  • €151.30 from 5 pcs.
47150 25 250 M6x6 80
  • €193.95 from 1 pc.
  • €170.62 from 5 pcs.
47160 25 300 M6x6 80
  • €211.95 from 1 pc.
  • €185.29 from 5 pcs.
47170 25 350 M6x6 80
  • €232.61 from 1 pc.
  • €205.95 from 5 pcs.
47180 25 400 M6x6 80
  • €247.27 from 1 pc.
  • €223.28 from 5 pcs.
47190 25 450 M6x6 80
  • €262.60 from 1 pc.
  • €238.61 from 5 pcs.
47200 25 500 M6x6 80
  • €277.93 from 1 pc.
  • €254.60 from 5 pcs.
47210 25 550 M6x6 80
  • €295.26 from 1 pc.
  • €271.27 from 5 pcs.
47220 25 600 M6x6 80
  • €312.59 from 1 pc.
  • €289.93 from 5 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

With these strong magnetic filter bars in neodymium, you can get rid of the metal shavings and particles in your system. Thanks to the long durability and the low level of wear and tear of the product, you can expand your duration of your production line and minimize the risk of costly maintenance and cleaning.


The products in the list above are our standard measures, but we are able to produce a custom-made magnetic filter bar for your specific system. If you want to use the filter bars within humid or wet environments or in contact with food, it requires special consideration when producing. We can also improve the magnet's ability to withstand a higher temperature up to 350°C.


The magnetic flux density is measured in mT (milliTesla). 1 mT is 10 Gauss.


For further information and possibilities please contact us at post@larkomagnet.com or +45 39654800.

Specifications
Specifications
Magnet Neodymium
Surface Stainless steel
Max temperature 80 °C
Type Internal thread
Thread M6x6
Magnetic flux density 600 mT (milliTesla)
Certifications RoHS, REACH, Code of Conduct, UV resistance, SSNT 720h.
