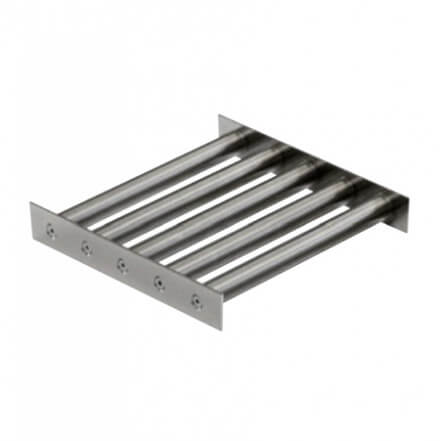

Magnetic grid – Square / Neodymium

- For square shaped systems

A square magnetic grid with filter bars ideal for filtration of metal particles and shavings within square shaped applications. The grid is only screwed together, which makes it easy to take apart when it needs to be cleaned. The magnetic grid requires minimal maintenance and has long durability. The grid minimizes the risk of downtime in the system due to unwanted passage of metal parts. It is ideal in applications where the granules are in free fall.

  • Collects metal particles and shavings in square-shaped applications
  • Magnetic field: 30 mm
  • Stainless steel housing
  • Many standard dimensions
  • All magnetic grids are produced by order
  • Easy to clean
  • Ask the sales department if in need of other dimensions or a higher temperature tolerance
  • Contact the sales department if the grid comes in contact with food or is going to be installed within humid/wet environments
Specifications
Magnet: Neodymium
Surface: Stainless steel
Max temperature: 80 °C
Diameter of the filter bars: 25 mm
Magnetic flux density: 600 mT (milliTesla)
Certifications: RoHS, REACH, UV resistance, SSNT 1000h., Code of Conduct
100,00 kr
SIZES AND VARIANTS
Art. no. L mm W mm H mm No. of filter bars Price (Excl. VAT.) Qty
47400 100 100 40 2
  • €257.94 from 1 pc.
47410 150 150 40 3
  • €424.56 from 1 pc.
47420 200 200 40 4
  • €618.51 from 1 pc.
47430 250 250 40 5
  • €806.47 from 1 pc.
47440 300 300 40 6
  • €1,061.73 from 1 pc.
47450 350 350 40 7
  • €1,313.01 from 1 pc.
47460 400 400 40 8
  • €1,606.27 from 1 pc.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

A magnetic grid for filtration of small metal elements e.g. metal particles and shaving. The magnetic grid with filter bars is made with high quality focusing on the high demands regarding duration and execution. Even though the grid is easy to take apart for cleaning, this is a solid magnetic product, which can prevent unwanted metal elements from being transported further into the system or to the final product.


Magnetic grid in many different variations

The magnetic grid can be produced in many different variations and dimensions depending on your exact application and wishes. No matter if, it is this type, the round magnetic grids for pipe systems, the magnetic grids for funnel systems, or the magnetic filter bars, you can adjust them for your system.


The magnetic flux density is measured in mT (milliTesla). 1 mT is 10 Gauss.


Contact us for more information and advice regarding your needs at +45 39654800 or post@larkomagnet.com.

Specifications
Specifications
Magnet Neodymium
Surface Stainless steel
Max temperature 80 °C
Diameter of the filter bars 25 mm
Magnetic flux density 600 mT (milliTesla)
Certifications RoHS, REACH, UV resistance, SSNT 1000h., Code of Conduct
