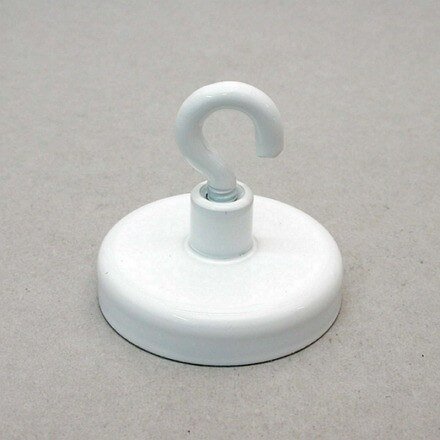

Magnetic hooks in steel – white

– Strong holding force

These white lacquered magnetic hooks in steel are ideal for professional holding applications in the office, warehouse, workshop etc. Use the magnetic hook on all types of metal surfaces – on the walls or ceilings. The hook ensures safe fixing of equipment, furniture, display elements etc.



  • Strong holding force
  • White lacquering
  • Solid magnetic hook
  • Applications on wall/ceiling
  • Dimension D80 mm is produced with eye bolt
  • The magnetic hook can be produced in any RAL color from 1000 pcs and up
Specifications
Magnet: Ferrite
Surface: Steel with white lacquering
Max temperature: 40 °C
Hook: Hook or eye bolt
Strength: Up to 600 Newton depending on the dimension
Holding force: 10 Newton ~ approx. 1 Kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
SIZES AND VARIANTS
Art. no.D mmMHolding force NPrice (Excl. VAT.)Qty
3070016M318
  • €2.60 from 10 pcs.
  • €2.33 from 100 pcs.
  • €1.90 from 500 pcs.
  • €1.23 from 1000 pcs.
3071020M330
  • €2.87 from 10 pcs.
  • €2.60 from 100 pcs.
  • €2.17 from 500 pcs.
  • €1.63 from 1000 pcs.
3072025M440
  • €2.90 from 10 pcs.
  • €2.63 from 100 pcs.
  • €2.20 from 500 pcs.
  • €1.80 from 1000 pcs.
3073032M480
  • €2.93 from 10 pcs.
  • €2.67 from 100 pcs.
  • €2.23 from 500 pcs.
  • €1.83 from 1000 pcs.
3074036M4100
  • €3.03 from 10 pcs.
  • €2.73 from 100 pcs.
  • €2.20 from 500 pcs.
  • €1.83 from 1000 pcs.
3075040M4125
  • €3.67 from 10 pcs.
  • €3.40 from 100 pcs.
  • €2.97 from 500 pcs.
  • €2.60 from 1000 pcs.
3076047M4180
  • €3.83 from 10 pcs.
  • €3.53 from 100 pcs.
  • €3.13 from 500 pcs.
  • €2.83 from 1000 pcs.
3077050M4220
  • €3.97 from 10 pcs.
  • €3.67 from 100 pcs.
  • €3.30 from 500 pcs.
  • €2.83 from 1000 pcs.
3078057M4280
  • €4.37 from 10 pcs.
  • €3.97 from 100 pcs.
  • €3.70 from 500 pcs.
  • €3.13 from 1000 pcs.
3079063M4350
  • €5.30 from 10 pcs.
  • €4.87 from 100 pcs.
  • €4.60 from 500 pcs.
  • €4.20 from 1000 pcs.
3079580M6600
  • €7.86 from 10 pcs.
  • €7.13 from 100 pcs.
  • €6.73 from 500 pcs.
  • €6.30 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This white lacquered magnetic hook in steel holds the advantage of a high magnetic strength and a solid hook. Magnetic hooks are used for many different purposes and the exclusive white lacquered surface makes the product ideal for visible applications where the design plays an important part. The magnetic hook is solely produced by high quality ferrite magnets and steel material.



Magnetic strength

The holding force of the magnetic hook depends on the dimension. At the largest dimension (D80 mm) the magnetic hook reaches a magnetic strength up to 600 newton. See all strengths in the overview above.



Dimension

All magnetic hooks in steel are produced with hook except article number 30795 (D80 mm) which is made with eye bolt. Please see dimensions, prices and magnetic strengths in the product overview.



Remarks

Please note that marks or scratches can appear in the lacquered surface if the magnetic hook is placed directly up against another product or is striked by other objects.

The magnetic hook can also be produced in any RAL color at a minimum purchase of 1000 pcs. Please contact the sales department for more information.



The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Magnet Ferrite
Surface Steel with white lacquering
Max temperature 40 °C
Hook Hook or eye bolt
Strength Up to 600 Newton depending on the dimension
Holding force 10 Newton ~ approx. 1 Kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
