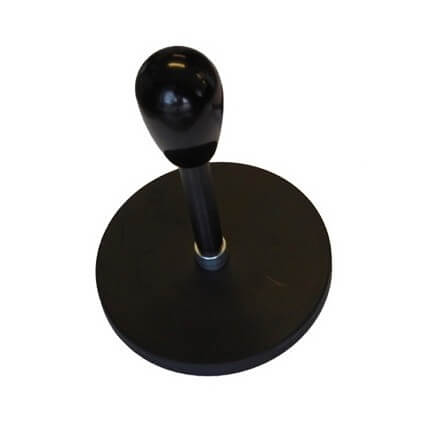

Handheld magnetic sheets lifter - rubber

-For small metal sheets

This handheld magnetic sheets lifter is produced with cylinder shaped handle for safe and easy lifting of metal objects. Equipped with strong neodymium rubber magnet that protects the surface from scratches and other marks. Highly suitable in workshops for lifting minor metal sheets.



  • Holding force up to 420 newton (42 kilos)
  • Turn the handle in order to release the magnet
  • Cylinder shaped handle provides a stable lift
  • Suitable for workshops
  • Magnet and handle not assembled
Specifications
Magnet: Neodymium rubber magnet with screwed bush
Max temperature: 40 °C
Strength: 420 Newton
Newton: 10N ~ 1 Kg
€40.54
Models
Art. no. Ø mm H mm Price Qty
45110 88 100
  • €40.54 from 1 pc.
  • €34.69 from 5 pcs.
  • €30.61 from 10 pcs.
  • €26.53 from 20 pcs.
100,00 kr
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This magnetic sheets lifter with rubber magnet is particularly useful in the warehouse or workshop for lifting steel sheets. Often it can be hard to properly reach the sheets due to the work gloves and this is where the handheld magnetic sheets lifter comes in handy. The sheets lifter quickly grabs the first top sheets making it easy to pull them out (the number of sheets will depend on the thickness and material of the metal)



Holding force

Thanks to the rubber magnet the handheld sheets lifter provides an efficient holding force. The santoprene rubber ensures that the surface is never damaged or scratched. Furthermore, the rubber has excellent anti-gliss abilities that prevents the sheets from sliding down at vertical lifts.



Dimension

The rubber magnet itself has a dimension of Ø88 mm and the handle is mounted via the screwed bush. The handle measures 100 mm in height.



Other models

Other magnetic lifters are available. See the whole range of magnetic lifters here



Remarks

Please note, that the handled is not welded onto the rubber magnet for which it is possible to screw the handle on and off as needed.

Specifications
Specifications
Diameter (mm) 88
Længde (mm) 100
Type simple
Magnet Neodymium rubber magnet with screwed bush
Max temperature 40 °C
Strength 420 Newton
Newton 10N ~ 1 Kg
