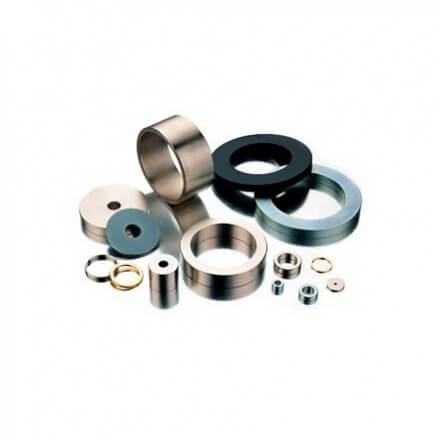

Neodymium ring magnets

With/without countersunk

Neodymium ring magnets are strong permanent raw magnets produced in extra high quality. Ring magnets have numerous application possiblities within the industrial business area and the magnets are often used in machinery, production facilities, motors, sensors, display systems, etc.



  • Larko’s Neodymium ring magnets are magnitized axially
  • Ring magnets can be achieved with/without countersunk holes
  • Quality grade N35 is used for the neodymium ring magnets. Please contact us if other quality is needed.
  • Max temperature: 80 °C
  • Tolerance Ø: +/- 0.2 mm
  • Tolerance: H: +/- 0.1 mm
  • Tolerance: ø: +/- 0.15 mm
Specifications
Material: NdFeb (neodym)
Surface: Ni-Cu-Ni
Max Temperatur: 80 °C
Grade: N35
Tolerance for Ø: +/- 0.2 mm
Tolerance for H: +/- 0.1 mm
Tolerance for ø: +/- 0.15 mm
Magnetisation: Aksial som standard
Holding force: 10 Newton svarer til ca. 1 kg.
Certifications: RoHS, REACH, Larko Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm ø mm Countersunk Holding force N Price Qty
5000 12 3 3,5 Ja 18
  • €1.35 from 10 pcs.
  • €0.85 from 100 pcs.
  • €0.44 from 1000 pcs.
5015 15 3,5 4,6 Ja 29
  • €1.46 from 10 pcs.
  • €0.99 from 100 pcs.
  • €0.58 from 1000 pcs.
5020 18 4 4,5 Ja 41
  • €1.65 from 10 pcs.
  • €1.22 from 100 pcs.
  • €0.71 from 1000 pcs.
5030 24 4 5,5 Yes 66
  • €2.24 from 10 pcs.
  • €1.68 from 100 pcs.
  • €1.34 from 1000 pcs.
5040 32 2 10,5 Nej 42
  • €2.55 from 10 pcs.
  • €1.94 from 100 pcs.
  • €1.53 from 1000 pcs.
5049 37 4 27 Nej 40
  • €4.39 from 10 pcs.
  • €3.57 from 100 pcs.
  • €2.89 from 1000 pcs.
5050 38 4 12 Nej 110
  • €4.78 from 10 pcs.
  • €4.48 from 100 pcs.
  • €3.37 from 1000 pcs.
5060 48 5 15 Nej 165
  • €10.22 from 10 pcs.
  • €8.47 from 100 pcs.
  • €7.38 from 1000 pcs.
5070 56 6 15 Nej 230
  • €11.58 from 10 pcs.
  • €10.22 from 100 pcs.
  • €8.47 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

Neodymium ring magnets from Larko Magnet are produced as round disc magnets with hole. The possibility of countersunk holes depends on the dimension in question. Please see further information under Sizes and Variations.



Thanks to the rare earth neodymium material the ring magnets are some of the strongest permanent magnets in the world. Consequently, they provide companies with multiple application possibilities. Larko’s neodymium ring magnets have undergone a special Ni-Cu-ni treatment which protects the ring magnet and ensures long durability.



Neodymium magnets are also produced as disc magnets, block magnets and sphere magnets.



Remarks

Neodymium magnets can corrode in moist environments. *The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material NdFeb (neodym)
Surface Ni-Cu-Ni
Max Temperatur 80 °C
Grade N35
Tolerance for Ø +/- 0.2 mm
Tolerance for H +/- 0.1 mm
Tolerance for ø +/- 0.15 mm
Magnetisation Aksial som standard
Holding force 10 Newton svarer til ca. 1 kg.
Certifications RoHS, REACH, Larko Code of Conduct
