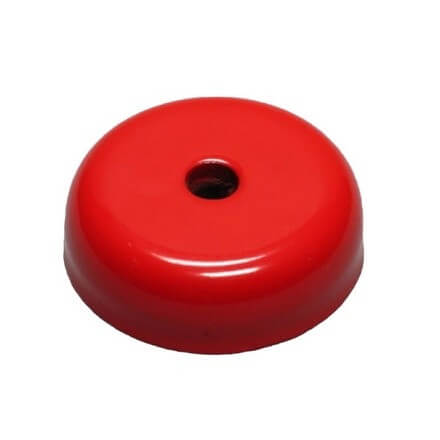

Pot magnet – AlNiCo – bore / countersunk

- Red lacquered / galvanized housing

Excello pot magnet of AlNiCo material with countersunk. Red lacquered. Primarily used for holding applications within the industrial area where the countersunk ensures an effective and easy mounting.



  • Pot magnet with exclusive red lacquering
  • Tolerance up to +/- 1.0 mm – depending on the dimension
  • Working temperatures up to 180 °C
  • If special requirements please contact our technical department
  • Also available unpainted and with galvanized housing
Specifications
Materiale: AlNiCo
Surface: Lacquered / zinc
Max temperatur: 180 °C
Type: Bore and counterbore
Tolerance: +/- 1.0 mm afhængig af dimensionen
Holding force: 10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm ø mm Holding force N Price Qty
15434 19,1 7,5 3,7 30
  • €4.05 from 1 pc.
  • €3.20 from 10 pcs.
  • €2.72 from 100 pcs.
  • €2.21 from 1000 pcs.
15435 28,6 8,5 4,8 40
  • €5.65 from 1 pc.
  • €4.76 from 10 pcs.
  • €4.39 from 100 pcs.
  • €3.84 from 1000 pcs.
15436 38,1 10,4 4,8 80
  • €7.72 from 1 pc.
  • €6.39 from 10 pcs.
  • €6.02 from 100 pcs.
  • €5.61 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

The AlNiCo pot magnet of the Excello series is equipped with countersunk for easy and simple mounting. The model with red lacquering is a particularly exclusive model highly suitable for visible applications where design and color plays an important role.



The pot magnet forms part of the Excello quality series for a strong and durable product.



During production of this pot magnet a solid AlNiCo magnet is enclosed in the metal pot ensuring only one active magnet side. The metal pot makes it possible to produce the countersunk and it is also possible to produce the pot magnet with thread or screwed bush.



Magnetic strength for the AlNiCo pot magnet

The holding force of this AlNiCo pot magnet reaches up to 80 newton (approx. 8 kilos). The actual holding force is dependent on the dimensions and a full list of dimensions is available via the “Product overview”.



Dimension

AlNiCo pot magnets with countersunk are produced in three different standard dimensions. If other dimensions are needed please contact our technical department for the possibility of producing a custom-made product.



Other Excello models

It is also possible to acquire the pot magnets with neodymium or pot magnets with ferrite magnet. The right choice depends on the precise demands to magnetic strength, working temperatures and the general application.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Materiale AlNiCo
Surface Lacquered / zinc
Max temperatur 180 °C
Type Bore and counterbore
Tolerance +/- 1.0 mm afhængig af dimensionen
Holding force 10 Newton = approx. 1 kg.
Certifications RoHS, REACH, Code of Conduct
