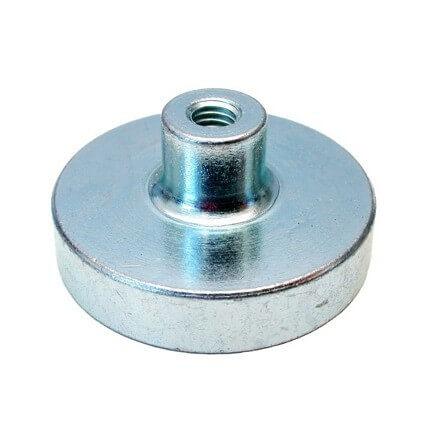

Pot magnet – neodymium – screwed bush

-Bush with internal thread

This Excello pot magnet is produced with a screwed bush and a neodymium magnet. A particularly strong magnetic product with ideal gripping and holding abilities for industrial use.



  • Great holding force up to 1000 Newton
  • Excellent gripping and holding abilities due to the screwed bush with M3-M8
  • Flexible application possibilities allow for easy adjusting and moving of the magnet
  • Tolerance: + 0.2 / - 0.2 (depending of the dimension)
  • Max temperature: 80 °C
  • Custom made systems can also be arranged – please ask in our technical department
Specifications
Material: Neodym (NdFeb)
Surface: Steel body / zinc
Tolerance: 0.2 / - 0.2 mm
Max temp.: 80 °C
Type: Screwed bush
Thread: M3 – M8
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm L mm H mm ø mm M Holding force N Price Qty
20010 6 11,5 4,5 6 M3 5
  • €3.27 from 1 pc.
  • €2.62 from 10 pcs.
  • €1.94 from 100 pcs.
  • €1.36 from 1000 pcs.
20020 8 11,5 4,5 6 M3 13
  • €3.33 from 1 pc.
  • €2.72 from 10 pcs.
  • €2.01 from 100 pcs.
  • €1.43 from 1000 pcs.
20030 10 11,5 4,5 6 M3 25
  • €3.40 from 1 pc.
  • €2.86 from 10 pcs.
  • €2.11 from 100 pcs.
  • €1.50 from 1000 pcs.
20040 13 11,5 4,5 6 M3 60
  • €3.47 from 1 pc.
  • €2.93 from 10 pcs.
  • €2.18 from 100 pcs.
  • €1.56 from 1000 pcs.
20050 16 11,5 4,5 6 M4 95
  • €3.57 from 1 pc.
  • €3.10 from 10 pcs.
  • €2.41 from 100 pcs.
  • €1.80 from 1000 pcs.
20060 20 13 6 8 M4 140
  • €4.05 from 1 pc.
  • €3.54 from 10 pcs.
  • €2.86 from 100 pcs.
  • €2.28 from 1000 pcs.
20070 25 14 7 8 M4 200
  • €5.34 from 1 pc.
  • €4.76 from 10 pcs.
  • €4.05 from 100 pcs.
  • €3.40 from 1000 pcs.
20080 32 15,5 7 10 M5 350
  • €6.67 from 1 pc.
  • €6.02 from 10 pcs.
  • €5.31 from 100 pcs.
  • €4.66 from 1000 pcs.
20090 40 18 8 10 M6 670
  • €10.07 from 1 pc.
  • €9.17 from 10 pcs.
  • €8.44 from 100 pcs.
  • €7.00 from 10000 pcs.
20091 47 20,5 9,2 12 M6 790
  • €13.41 from 1 pc.
  • €12.44 from 10 pcs.
  • €11.40 from 100 pcs.
  • €10.76 from 1000 pcs.
20092 50 22 10 15 M8 1000
  • €15.53 from 1 pc.
  • €14.37 from 10 pcs.
  • €12.80 from 100 pcs.
  • €11.86 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This Excello pot magnet with screwed bush is characterized by having a strong neodymium magnet enclosed in a protective metal pot. This ensures only one active magnetic side whereas the opposite side is for mounting via the screwed bush.



The metal pot serves not only as protection for the enclosed magnet but it also increases the overall magnetic force of the product. This ensures a particularly strong magnetic product with multiple application possibilities. The pot magnet forms part of our high-quality Excello series which provide the needed certainty and approval regarding accurate magnetic strength and long durability.



Magnetic strength for the pot magnet

The pot magnet with screwed bush provides a high magnetic strength. As a standard this pot magnet reaches up to 1000 Newton but the actual strength depends on the dimension. The neodymium magnets enclosed in the metal pot form the basis for the magnetic strength and the pot itself contributes to the holding force.



Dimension

This type of neodymium pot magnet comes in dimensions from Ø6 mm – Ø50 mm. If other dimensions are needed please contact our technical department.



Other Excello pot magnets

Please also see the other NdFeB pot magnets with internal thread, NdFeB pot magnets with external thread, NdFeB pot magnets with bore / counterbore and the NdFeB simple pot magnets.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodym (NdFeb)
Surface Steel body / zinc
Tolerance 0.2 / - 0.2 mm
Max temp. 80 °C
Type Screwed bush
Thread M3 – M8
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
