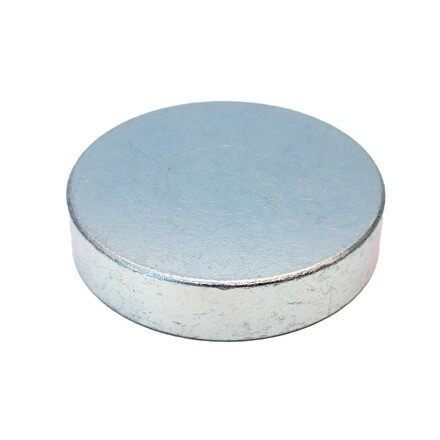

Pot magnet – neodymium – simple flat magnet

- Without drill ore thread

This Excello pot magnet is produced with a strong neodymium magnet placed in a protective metal pot. The pot magnet is shaped as a simple flat magnet with no thread.



  • Efficient holding abilities
  • Flexible product with easy adjusting and moving
  • Magnetic strength up to 350 Newton
  • Please contact our tehcnicle department if in need of a special system
  • Tolerance: + 0.2 / - 0.2 mm (depending on the dimension)
  • Max temperature: 80 °C
Specifications
Material: Neodym (NdFeb)
Surface: Steel body / zinc
Tolerance: + 0.2 / - 0.2 mm
Max temp.: 80 °C
Type: Simple flat
10 Newton = approx. 1 kg
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm Holding force N Price Qty
20300 6 4,5 5
  • €3.23 from 1 pc.
  • €2.55 from 10 pcs.
  • €1.84 from 100 pcs.
  • €1.22 from 1000 pcs.
20310 8 4,5 13
  • €3.27 from 1 pc.
  • €2.59 from 10 pcs.
  • €1.90 from 100 pcs.
  • €1.26 from 1000 pcs.
20320 10 4,5 25
  • €3.37 from 1 pc.
  • €2.69 from 10 pcs.
  • €2.01 from 100 pcs.
  • €1.39 from 1000 pcs.
20330 13 4,5 60
  • €3.40 from 1 pc.
  • €2.72 from 10 pcs.
  • €2.04 from 100 pcs.
  • €1.50 from 1000 pcs.
20340 16 4,5 95
  • €3.47 from 1 pc.
  • €2.82 from 10 pcs.
  • €2.14 from 100 pcs.
  • €1.67 from 1000 pcs.
20350 20 3,5 110
  • €3.95 from 1 pc.
  • €3.37 from 10 pcs.
  • €2.86 from 100 pcs.
  • €2.19 from 1000 pcs.
20360 20 6 140
  • €4.08 from 1 pc.
  • €3.47 from 10 pcs.
  • €2.96 from 100 pcs.
  • €2.38 from 1000 pcs.
20370 25 7 200
  • €5.27 from 1 pc.
  • €4.66 from 10 pcs.
  • €3.98 from 100 pcs.
  • €3.23 from 1000 pcs.
20380 32 7 350
  • €6.63 from 1 pc.
  • €5.99 from 10 pcs.
  • €5.34 from 100 pcs.
  • €4.66 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This simple Excello Pot magnet is produced with a neodymium magnet enclosed in a solid metal pot. One side of the magnet has no surrounding pot and is the only active magnetic side. Only high-quality materials are used to manufacture these pot magnets. This is reflected in the accurate magnetic force and the long durability of the product.



The neodymium magnet enclosed in this product is a high quality raw magnet that has undergone several quality tests and are produced under strict manufacturing processes. The pot magnet forms part of our quality Excello series which provides the needed certainty and approval regarding accurate magnetic strength and long durability.



Magnet strength for the simple pot magnet

The holding force of these neodymium flat pot magnets vary according to their dimension. Neodymium magnets are characterized by providing a very high magnetic strength and the surrounding metal pot also increases the overall force of the product. See strengths and dimensions in the overview above.



Dimension

These neodymium flat pot magnets comes in dimensions from Ø6 – Ø32 mm.



Other Excello pot magnets

See also our range of neodymium pot magnets with internal thread, neodymium pot magnets with external thread, neodymium pot magnets with screwed bush and neodymium pot magnets with bore / countersunk.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodym (NdFeb)
Surface Steel body / zinc
Tolerance + 0.2 / - 0.2 mm
Max temp. 80 °C
Type Simple flat
10 Newton = approx. 1 kg
Certifications RoHS, REACH, PAC free, Code of Conduct
