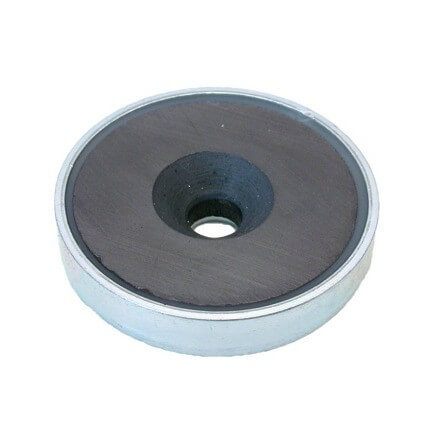

Pot magnet – ferrite – bore / countersunk

- Unique gripping abilities

The Excello pot magnet with bore and countersunk provides many mounting possibilities. The inner and outer entrance differ in dimension and provides several gripping abilities within the industrial areas. Please note the high working temperatures.



  • Countersunk provides different dimension for outer and inner entrance
  • Pot magnet also available in stainless steel here.
  • Tolerance: +0.4 / -0.2 mm
  • Great gripping and holding functions
  • Max temperature: 200 °C
  • If any special requirements please contact us for the opportunity of a custom-made product
Specifications
Material: Ferrite
Surface: Steel body / Zinc
Tolerance: +0.4 / -0.2 mm
Max temperatur: 200 °C
Holding force: 10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm ø1 mm ø2 mm Holding force N Price Qty
20700 16 4,5 3,5 6,5 14
  • €2.86 from 1 pc.
  • €2.31 from 10 pcs.
  • €1.77 from 100 pcs.
  • €1.33 from 1000 pcs.
20710 20 6 4,1 9,4 27
  • €2.93 from 1 pc.
  • €2.38 from 10 pcs.
  • €1.84 from 100 pcs.
  • €1.39 from 1000 pcs.
20720 25 7 5,5 11,5 36
  • €2.99 from 1 pc.
  • €2.45 from 10 pcs.
  • €1.90 from 100 pcs.
  • €1.50 from 1000 pcs.
20730 32 7 5,5 11,5 72
  • €3.13 from 1 pc.
  • €2.55 from 10 pcs.
  • €2.01 from 100 pcs.
  • €1.56 from 1000 pcs.
20740 40 8 5,5 11,5 90
  • €3.27 from 1 pc.
  • €2.72 from 10 pcs.
  • €2.21 from 100 pcs.
  • €1.80 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This Excello pot magnet with countersunk is a high-quality product produced solely by excellent raw materials. The pot magnet is a solid product that is subdued to strict quality-testing. The pot magnet forms part of our Excello series that provides certainty regarding accurate magnetic strength and long durability.



This type is produced with a ferrite magnet with countersunk. The ferrite magnet is enclosed in a metal pot that serves as protection against scratches and blows. The metal pot also contributes to the increasing of the overall magnetic force.



Magnetic strength for the pot magnet

The holding force depends on the dimension in question. It reaches 90 Newton as a standard. If stronger magnet is needed, please see the pot magnet with internal thread instead or contact us if special production is to be arranged.



Dimensions

This product with countersunk and ferrite magnet comes in dimensions up to Ø 40 mm. If larger dimension is needed please contact our sales department to talk about the possibilities of a custom-made product.



Other Excello pot magnet

See also the ferrite pot magnet with internal thread, ferrite pot magnet with external thread. See all ferrite pot magnets here.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrite
Surface Steel body / Zinc
Tolerance +0.4 / -0.2 mm
Max temperatur 200 °C
Holding force 10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
