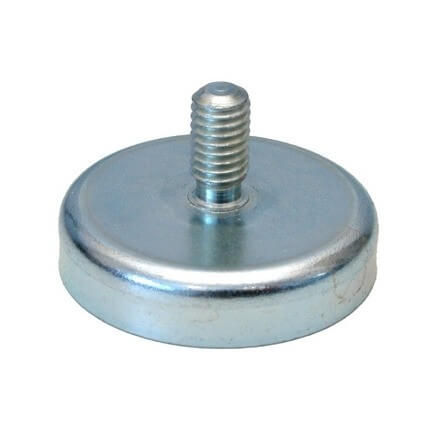

Pot magnet – ferrite – external thread

-Solid thread

This Excello pot magnet is developed with an external thread and a strong ferrite magnet ensures the magnetic holding force. The solid thread provides many different holding and gripping abilities and the pot magnet is particularly useful within the heavy industry.



  • Different screw dimensions
  • Easy adjusting and moving of the magnet makes this product particularly flexible in use
  • Tolerance: +0.5 / -0.5 mm
  • Max temperature: 200 °C
  • Version in stainless steel is possible
Specifications
Material: Ferrite
Surface:Steel body / Zinc
Tolerance: +0.5 / -0.5 mm
Max temp.: 200 °C
Type: External thread
10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm L mm H mm M Holding force N Price Qty
20900 10 7 4,5 M3 4
  • €2.69 from 1 pc.
  • €1.97 from 10 pcs.
  • €1.56 from 100 pcs.
  • €1.12 from 1000 pcs.
20910 13 7 4,5 M3 10
  • €2.89 from 1 pc.
  • €2.04 from 10 pcs.
  • €1.63 from 100 pcs.
  • €1.19 from 1000 pcs.
20920 16 7 4,5 M3 18
  • €2.89 from 1 pc.
  • €2.04 from 10 pcs.
  • €1.63 from 100 pcs.
  • €1.19 from 1000 pcs.
20930 16 6 4,5 M4 18
  • €2.96 from 1 pc.
  • €2.11 from 10 pcs.
  • €1.70 from 100 pcs.
  • €1.26 from 1000 pcs.
20940 20 7 6 M3 30
  • €3.06 from 1 pc.
  • €2.21 from 10 pcs.
  • €1.80 from 100 pcs.
  • €1.36 from 1000 pcs.
20950 20 30 6 M6 30
  • €3.27 from 1 pc.
  • €2.55 from 10 pcs.
  • €2.14 from 100 pcs.
  • €1.73 from 1000 pcs.
20960 25 8 7 M4 40
  • €3.06 from 1 pc.
  • €2.21 from 10 pcs.
  • €1.80 from 100 pcs.
  • €1.36 from 1000 pcs.
20970 25 15 7 M5 40
  • €3.10 from 1 pc.
  • €2.24 from 10 pcs.
  • €1.84 from 100 pcs.
  • €1.39 from 1000 pcs.
20980 25 20 7 M6 40
  • €3.13 from 1 pc.
  • €2.28 from 10 pcs.
  • €1.87 from 100 pcs.
  • €1.43 from 1000 pcs.
20990 32 8 7 M4 80
  • €3.13 from 1 pc.
  • €2.45 from 10 pcs.
  • €2.07 from 100 pcs.
  • €1.63 from 1000 pcs.
21000 32 12 7 M6 80
  • €3.23 from 1 pc.
  • €2.62 from 10 pcs.
  • €2.31 from 100 pcs.
  • €1.94 from 1000 pcs.
21010 32 10 7 M8 80
  • €3.30 from 1 pc.
  • €2.72 from 10 pcs.
  • €2.41 from 100 pcs.
  • €2.04 from 1000 pcs.
21020 47 8 9 M6 180
  • €4.01 from 1 pc.
  • €3.33 from 10 pcs.
  • €2.96 from 100 pcs.
  • €2.55 from 1000 pcs.
21030 57 8 10,5 M6 280
  • €4.63 from 1 pc.
  • €3.91 from 10 pcs.
  • €3.27 from 100 pcs.
  • €2.96 from 1000 pcs.
21040 63 15 14 M6 350
  • €6.97 from 1 pc.
  • €5.44 from 10 pcs.
  • €5.03 from 100 pcs.
  • €4.63 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This pot magnet holds the advantage of a solid external thread for easy and stable mounting of the magnet. The pot magnet is produced with a ferrite magnet making the pot magnet ideal for projects with working temperatures up to 200 °C.



The pot magnet is part of our well known Excello series that provides certainty regarding accurate magnetic strength and long durability. The pot magnet with external thread is a strong magnetic product, where the magnet itself is enclosed in a protective pot (hence the name). The pot protects the magnet from scratches and it increases the overall magnetic force of the product.



Magnetic strength for the Excello pot magnet

The pot magnet with external thread provides a high magnetic force up to 350 Newton depending on the dimension. The ferrite magnet does not deliver holding forces as high as neodymium magnets. However, the ferrite magnet generally speaking comes in larger dimensions, thus obtaining a large magnetic force this way. If in need of a stronger holding force please contact our technical department.



Dimension

This model with external thread is normally produced from Ø10mm - Ø63 mm as a standard. The thread varies with the dimension – from M3-M6. See the complete list of dimensions, magnetic force and prices above.



Other pot magnets

The products can also be acquired as ferrite pot magnets with internal thread, ferrite pot magnets with countersunkferrite pot magnets with screwed bush and ferrite pot magnets with cylinder bore.

Also check out our stainless steel pot magnets.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrite
Surface Steel body / Zinc
Tolerance +0.5 / -0.5 mm
Max temp. 200 °C
Type External thread
10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
