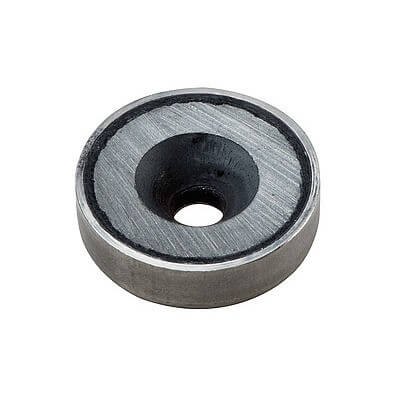

Pot magnet - ferrite - countersunk / stainless steel

- Suitable for special hygienic demands

Pot magnet in stainless steel with countersunk and ferrite magnet. The pot magnet is part of the Excello series that ensures high quality and long durability. Primarily utilized within the industrial area and the stainless steel provides for multiple application possibilities.



  • Stainless steel
  • Suitable for applications where special hygienic demands are present
  • High resistance to chemicals
  • High working temperatures – up to 220 °C.
Specifications
Material: Ferrite
Surface: Stainless steel body
Tolerance: +0.4 / -0.4 mm
Max temperatur: 220 °C
Type: Countersunk
Holding force:10 Newton = approx. 1 kg
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm ø1 mm ø2 mm Holding force N Price Qty
20710R 20 6 4,1 9,4 22
  • €3.10 from 1 pc.
  • €2.38 from 10 pcs.
  • €1.80 from 100 pcs.
  • €1.39 from 1000 pcs.
20720R 25 7 5,5 11,5 29
  • €3.27 from 1 pc.
  • €2.48 from 10 pcs.
  • €1.90 from 100 pcs.
  • €1.50 from 1000 pcs.
20730R 32 7 5,5 11,5 58
  • €3.44 from 1 pc.
  • €2.72 from 10 pcs.
  • €2.14 from 100 pcs.
  • €1.63 from 1000 pcs.
20740R 40 8 5,5 11,5 72
  • €3.84 from 1 pc.
  • €3.23 from 10 pcs.
  • €2.55 from 100 pcs.
  • €1.90 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

Thanks to the stainless steel material this Excello pot magnet guarantees an even larger range of application possibilities. The pot magnets are therefore highly able to meet the ever-increasing demands for applications in special areas with strict hygienic regulations.



The ferrite magnet and the countersunk ensures the great holding abilities. The ferrite magnet itself is enclosed in a stainless steel pot that not only protects the magnet but also increases the overall magnetic force of the product.



The stainless steel pot magnet is part of the Excello series that provide certainty regarding accurate magnetic strength and long durability.





Magnetic strength for the pot magnet

The Excello pot magnet with countersunk in stainless steel provides a magnetic strength up to 72 newton for the largest dimension. See the complete list of dimensions under “Product overview”.



Dimensions

The pot magnet with countersunk is produced in dimensions from Ø20-Ø40 mm as a standard. If there are any special requirements please contact us for the possibility of a custom-made product.



Other Excello Pot magnets

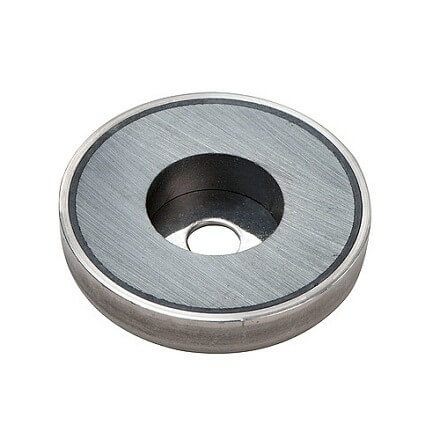

The ferrite pot magnet in stainless steel can also be acquiered in other models. See the stainless steel pot magnet with screwed bush and the stainless steel pot magnet with cylinder bore here. See our whole range of Excello pot magnets in ferrite here. If in need of more information or specifications please contact our sales department.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrite
Surface Stainless steel body
Tolerance +0.4 / -0.4 mm
Max temperatur 220 °C
Type Countersunk
Holding force 10 Newton = approx. 1 kg
Certifications RoHS, REACH, PAC free, Code of Conduct
