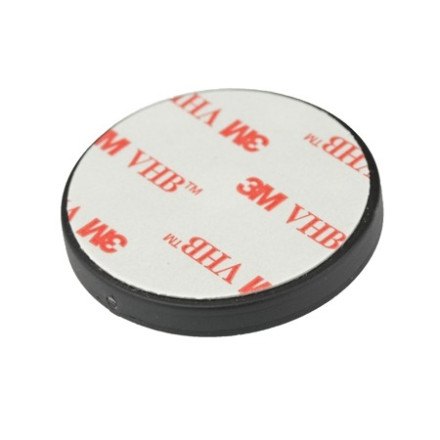

Rubber coated magnets - adhesive

- Double adhesive on the back

These Protego rubber coated magnets have adhesive tape on one side. The magnet is primarily used for painted and varnished surfaces due to the soft rubber.



  • Neodymium magnets are placed in the rubber ensuring the great holding force
  • High-quality double adhesive tape is used
  • Optimum fixation possibilities
  • Rubber protects both magnet and mounting surface
  • Max temperature: 60 °C
  • Reduced holding force due to the adhesive
Specifications
Material: Neodymium (NdFeb)
Surface: Rubber
Max temperature: 60 °C
Type: Rubber magnet with adhesive tape
Holding force: 30 Newton (10 Newton ~ 1 kg.)
Certifications: RoHS, REACH, PAC free, UV resistant, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm Holding force N Price Qty
61402 22 6 30
  • €5.78 from 1 pc.
  • €4.83 from 10 pcs.
  • €3.67 from 100 pcs.
  • €3.13 from 1000 pcs.
61406 43 7 30
  • €7.21 from 1 pc.
  • €6.26 from 10 pcs.
  • €5.14 from 100 pcs.
  • €4.39 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

Rubber coated magnets with adhesive on one side is used for projects where drill holes are not an option. A strong adhesive is used for this rubber magnet to ensure the best possible quality and fastening. Soft rubber material prevents marks and scratches from appearing during mounting.



The rubber magnet is part of our quality series Protego that provides the necessary certainty regarding magnetic force and durability.



Magnetic strength for the rubber coated magnet

Holding force for this magnet with adhesive is reduced due to the double adhesive tape. Holding forces reach up to 30 Newton.



Dimension

This rubber coated magnet with adhesive is produced in the dimensions Ø22 and Ø43 mm.



Other rubber coated magnet systems with adhesive

An alternative to this magnet could be the rubber coated magnet with adhesive and bore in the dimension Ø31 mm.

Apply our rubber magnet systems with caution due to the high magnetic strength.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium (NdFeb)
Surface Rubber
Max temperature 60 °C
Type Rubber magnet with adhesive tape
Holding force 30 Newton (10 Newton ~ 1 kg.)
Certifications RoHS, REACH, PAC free, UV resistant, Code of Conduct
