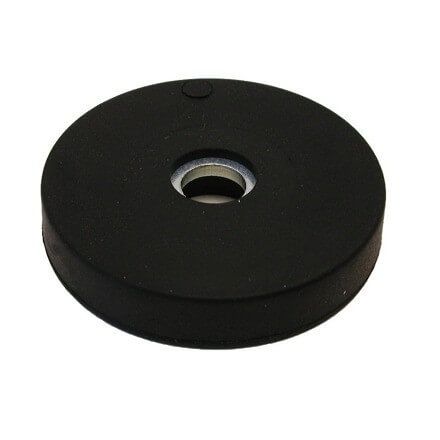

Rubber coated magnets – cylinder bore

- Drilling without threading

These Protego rubber coated magnets of high quality are developed with cylinder bore. The magnets are primarily used for varnished surfaces or applications where anti-gliss effect is needed.



  • Neodymium magnets placed in the rubber ensures great holding force – up to 550 newton
  • Quality rubber ensures zero gliding effect even on smooth surfaces
  • The rubber and cylinder bore provides optimum fixation possibilities
  • Dimension Ø43+ Ø88 has bore and counterbore (non-iron screw to be used)
  • Galvanized rubber magnet to be used indoors and outdoors
  • White rubber can be produced – please contact us for more information
  • Max temperature: 60 °C
Specifications
Material: Neodymium (NdFeb)
Surface: Santoprene
Max temperature: 60 °C
Type: Cylinder bore
Models: Ø43 + Ø88 mm is produced with bore and counterbore. Please use non-iron screw for mounting.
Holding force: 10 Newton svarer til ca. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm H mm ø1 mm ø2 mm h mm Newton N Price Qty
60198 18 6 3 8 3 25
  • €4.30 from 1 pc.
  • €3.37 from 10 pcs.
  • €2.63 from 100 pcs.
  • €2.10 from 1000 pcs.
60199 22 6 4 8,2 3,5 38
  • €5.00 from 1 pc.
  • €4.05 from 10 pcs.
  • €3.16 from 100 pcs.
  • €2.69 from 1000 pcs.
60200 31 6 6 9 3,5 75
  • €5.48 from 1 pc.
  • €4.52 from 10 pcs.
  • €3.71 from 100 pcs.
  • €3.14 from 1000 pcs.
60201 43 6 7 12,8 4,2 100
  • €5.75 from 1 pc.
  • €4.80 from 10 pcs.
  • €4.07 from 100 pcs.
  • €3.50 from 1000 pcs.
60210 57 7,6 8 25,3 3,3 175
  • €8.13 from 1 pc.
  • €6.95 from 10 pcs.
  • €6.14 from 100 pcs.
  • €5.54 from 1000 pcs.
60220 66 8,5 5,5 22 3,2 250
  • €8.61 from 1 pc.
  • €7.22 from 10 pcs.
  • €6.41 from 100 pcs.
  • €5.73 from 1000 pcs.
60225 88 8,5 6,6 22 3,1 550
  • €17.76 from 1 pc.
  • €15.71 from 10 pcs.
  • €13.95 from 100 pcs.
  • €12.41 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

Rubber magnets with cylinder bore are high-quality magnets for use within the industrial area such as offshore. They are highly suited for delicate surfaces such as vehicles as they do not leave any marks or scratches when in use. Only quality materials are used when producing this type of rubber coated magnet – down to the raw magnet and the soft rubber. This ensures a solid and durable product with a reliable magnetic force.



White rubber is also a possibility. Please contact us for further information.



The rubber coated magnet system is part of our quality series Protego that provides the necessary certainty regarding magnetic force and durability.



Magnetic strength for the rubber coated magnet

The magnetic strength for the rubber coated magnet systems depend on the actual dimension in question. The rubber magnet with cylinder bore can reach a force up to 550 newton. See the full list of magnetic strength in “Sizes and variants”.



Dimension

This type of rubber coated magnet can be acquired in different dimensions. Normal types are produced from Ø18 mm – Ø88 mm. Please contact us if in need of other dimensions or stronger holding force.



Please note, that article number 60201 + 60225 is produced with bore and countersunk. These types are to be used with a non-iron screw. Please ask in our technical department for more information.



Other rubber coated magnet systems

Please also see our Protego rubber magnets with screwed bush, rubber magnets with internal thread and rubber coated magnets with external thread.



Remarks

Apply our rubber magnet systems with caution due to the high magnetic strength.

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium (NdFeb)
Surface Santoprene
Max temperature 60 °C
Type Cylinder bore
Models Ø43 + Ø88 mm is produced with bore and counterbore. Please use non-iron screw for mounting.
Holding force 10 Newton svarer til ca. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
