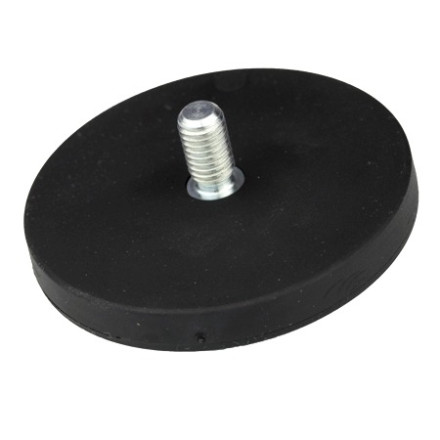

Rubber coated magnets – external thread

- Thread: M4, M6, M8

These rubber coated magnets are equipped with an external thread and forms part of our Protego series. The magnet is specifically produced for use on varnished or painted surfaces due to the protective qualities of the rubber. High-quality product with great holding force.



  • Neodymium magnets placed in the rubber provides strong holding force (up to 550 newton)
  • Solid product
  • Galvanized rubber for indoor and outdoor use
  • Anti-gliss qualities even at smooth surfaces
  • Rubber and thread provides for optimum fixation
  • Rubber magnet is also available in white rubber – please consult us for more information
  • Max temperatur: 60 °C
Specifications
Materiale: Neodymium (NdFeb)
Surfaces: Rubber
Max temperature: 60 °C
Type: External thread
Tread: M4 – M8
Holding force: 10 Newton svarer til ca. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm L mm H mm M Holding Force N Price Qty
60090 12 15,5 7,5 M4x8 13
  • €3.82 from 1 pc.
  • €2.87 from 10 pcs.
  • €2.35 from 100 pcs.
  • €1.97 from 1000 pcs.
60095 18 12 6 M4x6 37
  • €4.20 from 1 pc.
  • €3.40 from 10 pcs.
  • €2.93 from 100 pcs.
  • €2.60 from 1000 pcs.
60100 22 12,5 6 M4x6,5 58
  • €4.93 from 1 pc.
  • €3.98 from 10 pcs.
  • €3.44 from 100 pcs.
  • €2.96 from 1000 pcs.
60103 31 17 6 M6x11 89
  • €5.00 from 1 pc.
  • €4.17 from 10 pcs.
  • €3.53 from 100 pcs.
  • €3.13 from 1000 pcs.
60105 43 12 6 M4x6 100
  • €5.41 from 1 pc.
  • €4.46 from 10 pcs.
  • €3.84 from 100 pcs.
  • €3.44 from 1000 pcs.
60110 43 21 6 M6x15 100
  • €5.82 from 1 pc.
  • €4.73 from 10 pcs.
  • €4.18 from 100 pcs.
  • €3.74 from 1000 pcs.
60120 66 23,5 8,5 M8x15 250
  • €9.76 from 1 pc.
  • €8.40 from 10 pcs.
  • €7.69 from 100 pcs.
  • €7.11 from 1000 pcs.
60130SS 88 23,5 8,5 M8x15 550
  • €17.76 from 1 pc.
  • €15.71 from 10 pcs.
  • €14.05 from 100 pcs.
  • €12.41 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

The Protego rubber coated magnet with threaded neck is commonly used within the industrial areas and especially within the offshore sector and oil/gas industry. The rubber coated magnets are also suitable for use on vehicles, outdoor displays etc. Thanks to the special santoprene rubber these magnets has a set of very unique qualities that are not easily obtained in other products. The rubber provides protection for the magnets placed inside and for the mounted surface. This ensures zero marks and scratches even on fragile surfaces.



The rubber coated magnets are part of Larkos Protego series that provides certainty regarding strength and durability of the magnets. The threaded neck makes mounting of the rubber magnet very easy and ensures many application possibilities.



It is also possible to acquiere the Protego rubber magnets in white rubber if needed. Please ask in the sales department for more information.



Holding force of the rubber coated magnet

The holding force of these magnets can reach up to 550 Newton as a standard. However, the exact strength depends on the dimension. The high holding force can be obtained thanks to the strong neodymium magnets placed inside the rubber. See the complete list under “Sizes and variants”.



Dimension

The rubber coated magnets are produced in dimensions from Ø12 mm – Ø88 mm as a standard. A threaded neck is applied – from M4 to M8 depending on the diameter. If other dimensions or threading is needed please contact our technical department for a custom made system.



Other magnets

These products are also produced as rubber coated magnets with internal thread, rubber magnets with screwed bush and rubber coated magnets with cylinder bore.



Remarks

Apply our rubber magnet systems with caution due to the high magnetic strength.

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Materiale Neodymium (NdFeb)
Surfaces Rubber
Max temperature 60 °C
Type External thread
Tread M4 – M8
Holding force 10 Newton svarer til ca. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
