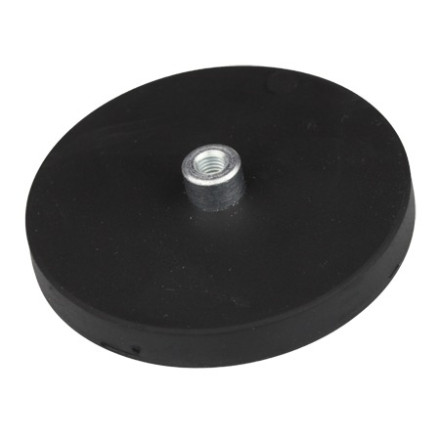

Rubber coated magnets – screwed bush

- Bush with internal thread

Strong rubber coated magnets with screwed bush. High-quality product ideal for varnished and painted surfaces.



  • Neodymium magnets placed in rubber ensures magnetic force up to 550 newton
  • Rubber protects both magnets and the mounting surface
  • Galvanized rubber magnet to be used for indoor and outdoor applications
  • High quality coating ensures zero gliding effect
  • Also produced in white rubber – please contact us for more information
  • Max temperature: 60 °C
Specifications
Material: Neodymium (NdFeb)
Surface: Santoprene
Max temperature: 60 °C
Type: Screwed bush
Thread: M4 – M8
Holding force: 10 Newton = approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
Models
Art. no. Ø mm L mm H mm ø mm M Newton N Price Qty
60000 12 14,8 7 8 M4 13
  • €3.82 from 1 pc.
  • €2.87 from 10 pcs.
  • €2.35 from 100 pcs.
  • €2.01 from 1000 pcs.
60010 22 11,5 6 8 M4 58
  • €4.78 from 1 pc.
  • €3.82 from 10 pcs.
  • €3.16 from 100 pcs.
  • €2.69 from 1000 pcs.
60020 31 11,5 6 8 M4 75
  • €5.46 from 1 pc.
  • €4.50 from 10 pcs.
  • €3.96 from 100 pcs.
  • €3.44 from 1000 pcs.
60030 43 10,5 6 8 M4 100
  • €5.75 from 1 pc.
  • €4.66 from 10 pcs.
  • €4.21 from 100 pcs.
  • €3.71 from 1000 pcs.
60035 43 10,5 6 8 M5 100
  • €5.99 from 1 pc.
  • €4.90 from 10 pcs.
  • €4.39 from 100 pcs.
  • €3.91 from 1000 pcs.
60040 66 15 8,5 10 M5 250
  • €9.67 from 1 pc.
  • €8.31 from 10 pcs.
  • €7.65 from 100 pcs.
  • €7.09 from 1000 pcs.
60050 88 17 8,5 12 M8 550
  • €17.76 from 1 pc.
  • €15.71 from 10 pcs.
  • €13.89 from 100 pcs.
  • €12.41 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

The strong rubber coated magnet with screwed bush has many application possibilities especially within industrial areas such as offshore and the oil and gas industry. The special rubber has been specifically developed for this type of magnet to ensure safe and easy mounting on varnished surfaces. The rubber coated magnet is part of our quality series Protego that provides the necessary certainty regarding magnetic force and durability.



The rubber prevents marks and scratches from appearing on fragile surfaces – even if the magnet is moved several times. The rubber coated magnet is galvanized which increases the application possibilities of the product furthermore.



If needed these rubber magnets are now available in white coloured rubber. Please ask in our sales department for further information.



Magnetic strength for the Protego rubber magnet

Rubber coated magnets with screwed bush generally have a very strong holding force thanks to the neodymium magnets placed in the rubber. The actual holding forces depends on the dimension and can reach up to 550 newton as a standard.



Dimension

Several models can be obtained of the rubber coated magnets. As a standard they are produced from 12-88 mm with different threading. See our whole range of products via “Sizes and variants”.



Other models

Beside the rubber magnet with screwed bush it is also possible to acquire rubber coated magnets with internal thread, rubber magnets with external thread and rubber magnets with cylinder bore.



Remarks

Apply our rubber magnet systems with caution due to the high magnetic strength.

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Neodymium (NdFeb)
Surface Santoprene
Max temperature 60 °C
Type Screwed bush
Thread M4 – M8
Holding force 10 Newton = approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
