SmCo block magnets

Square coercive magnets

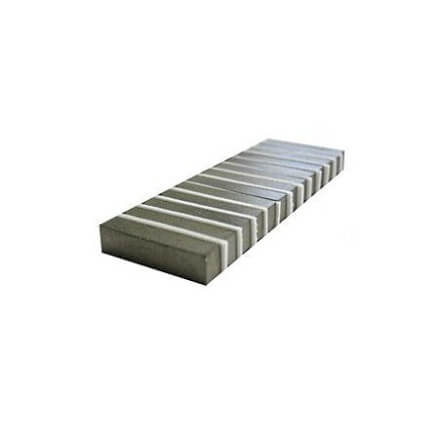

SmCo block magnets are produced of the rare earth material samarium-cobalt. SmCo block magnets are highly coercive with excellent corrosion resistance. They are commonly used at sensors or other devices where the magnet needs to operate in high temperatures.



  • SmCo magnets are axially magnetized
  • Quality grade RSC26H is used as a standard grade
  • Tolerance: +/- 0.1 mm
  • Max temperature: 350 °C
Specifications
Material: SmCo
Max temperature: 350 °C
Grade: RSC26H
Tolerance: +/- 0.1 mm
Magnetisation: Axial directed
Holding force: 10 Newton equals approx. to 1 kg.
Certifications: RoHS, REACH, Code of Conduct
100,00 kr
SIZES AND VARIANTS
Art. no. L mm W mm H mm Holding force N Price (Excl. VAT.) Qty
6200 7,5 4 1,5 3,4
  • €2.67 from 10 pcs.
  • €2.00 from 100 pcs.
  • €1.37 from 1000 pcs.
  • €1.10 from 5000 pcs.
6210 7,5 6 2 5
  • €2.83 from 10 pcs.
  • €2.20 from 100 pcs.
  • €1.57 from 1000 pcs.
  • €1.30 from 5000 pcs.
6220 10 7,5 2 7,5
  • €3.47 from 10 pcs.
  • €2.80 from 100 pcs.
  • €2.10 from 1000 pcs.
  • €1.83 from 5000 pcs.
6230 12 9,5 2,5 11
  • €4.13 from 10 pcs.
  • €3.30 from 100 pcs.
  • €2.50 from 1000 pcs.
  • €2.20 from 5000 pcs.
6240 16 12,5 2,5 15
  • €5.73 from 10 pcs.
  • €4.63 from 100 pcs.
  • €3.80 from 1000 pcs.
  • €3.30 from 5000 pcs.
6250 18 16,5 4 29
  • €6.40 from 10 pcs.
  • €5.13 from 100 pcs.
  • €4.33 from 1000 pcs.
  • €3.77 from 5000 pcs.
6260 26 20,3 5 51
  • €15.73 from 10 pcs.
  • €14.00 from 100 pcs.
  • €11.60 from 1000 pcs.
  • €10.60 from 5000 pcs.
6270 33 26 6,5 85
  • €25.19 from 10 pcs.
  • €22.93 from 100 pcs.
  • €21.06 from 1000 pcs.
  • €19.33 from 5000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

SmCo block magnets are characterized by their great ability to operate under high temperatures. Thanks to the hardness of the samarium-cobalt material the block magnet is ideal for industrial use and the magnet is often used at magnetic pumps, servo-motors etc.



Our magnets are also produced as SmCo ring magnets and SmCo disc magnets



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel (S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material SmCo
Max temperature 350 °C
Grade RSC26H
Tolerance +/- 0.1 mm
Magnetisation Axial directed
Holding force 10 Newton equals approx. to 1 kg.
Certifications RoHS, REACH, Code of Conduct
