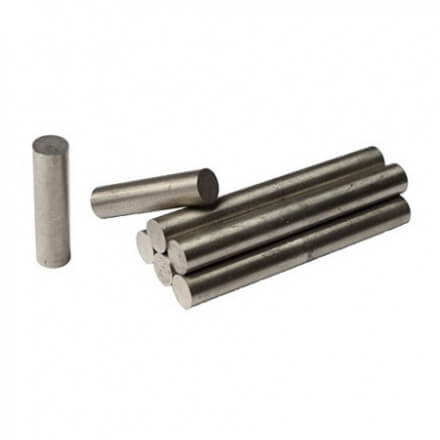

AlNiCo rod magnets

-Cylindermagnet

This AlNiCo magnet is a cylinder shaped rod magnet that is specifically used for the production of special tools and parts. Thanks to the hardness and high coercivity of the aluminium nickel cobalt material this magnet has often been the solution to many problems for engineers.



  • Quality grade AlNiCo 500 is commonly used
  • Note the high working temperatures up to 450°C
  • Ideal for high demanding projects.
  • Tolerance: +/- 0.2 mm
Specifications
Material: AlNiCo
Max temperature: 450 °C
Grade: AlNiCo 500 (ANC5)
Tolerance: +/- 0.2 mm
Magnetized: Axially
Holding force: 10 Newton ~ approx. 1 kg.
Certifications: RoHS, REACH, Code of Conduct
100,00 kr
SIZES AND VARIANTS
Art. no.D mmH mm°CNewtonKgPrice (Excl. VAT.)Qty
70003104501,10,1
  • €1.47 from 10 pcs.
  • €1.10 from 100 pcs.
  • €0.66 from 1000 pcs.
  • €0.53 from 5000 pcs.
70103124501,30,1
  • €1.60 from 10 pcs.
  • €1.20 from 100 pcs.
  • €0.70 from 1000 pcs.
  • €0.55 from 5000 pcs.
70204164501,90,2
  • €1.83 from 10 pcs.
  • €1.43 from 100 pcs.
  • €0.90 from 1000 pcs.
  • €0.70 from 5000 pcs.
703042045020,2
  • €1.90 from 10 pcs.
  • €1.47 from 100 pcs.
  • €0.93 from 1000 pcs.
  • €0.81 from 5000 pcs.
70405204502,60,3
  • €2.00 from 10 pcs.
  • €1.50 from 100 pcs.
  • €0.97 from 1000 pcs.
  • €0.83 from 5000 pcs.
70426154502,80,3
  • €2.00 from 10 pcs.
  • €1.50 from 100 pcs.
  • €0.97 from 1000 pcs.
  • €0.83 from 5000 pcs.
7042-16244502,80,3
  • €2.07 from 10 pcs.
  • €1.57 from 100 pcs.
  • €1.03 from 1000 pcs.
  • €0.90 from 5000 pcs.
70436304502,80,3
  • €2.13 from 10 pcs.
  • €1.70 from 100 pcs.
  • €1.17 from 1000 pcs.
  • €1.03 from 5000 pcs.
70558254503,80,4
  • €2.63 from 10 pcs.
  • €2.03 from 100 pcs.
  • €1.57 from 1000 pcs.
  • €1.23 from 5000 pcs.
7060102045050,5
  • €3.03 from 10 pcs.
  • €2.33 from 100 pcs.
  • €1.77 from 1000 pcs.
  • €1.47 from 5000 pcs.
7062104045070,7
  • €4.00 from 10 pcs.
  • €3.33 from 100 pcs.
  • €2.87 from 1000 pcs.
  • €2.23 from 5000 pcs.
7064124045080,8
  • €5.33 from 10 pcs.
  • €4.63 from 100 pcs.
  • €3.57 from 1000 pcs.
  • €3.00 from 5000 pcs.
70701530450101,0
  • €6.27 from 10 pcs.
  • €5.47 from 100 pcs.
  • €4.47 from 1000 pcs.
  • €3.80 from 5000 pcs.
70711560450111,1
  • €10.63 from 10 pcs.
  • €9.50 from 100 pcs.
  • €7.33 from 1000 pcs.
  • €6.50 from 5000 pcs.
70822080450383,9
  • €19.13 from 10 pcs.
  • €17.33 from 100 pcs.
  • €14.66 from 1000 pcs.
  • €14.46 from 5000 pcs.
70833480450616,2
  • €47.32 from 10 pcs.
  • €43.32 from 100 pcs.
  • €37.46 from 1000 pcs.
  • €35.79 from 5000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

These AlNiCo magnets are of a very high quality and are often used by engineers in the industrial sector. The magnetic force is somewhat smaller than the force of neodymium magnets but they distinguish themselves by their ability to operate under very high temperatures.

Beside the AlNiCo rod magnets it is also possible to acquire AlNiCo block magnets.



Remarks

The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material AlNiCo
Max temperature 450 °C
Grade AlNiCo 500 (ANC5)
Tolerance +/- 0.2 mm
Magnetized Axially
Holding force 10 Newton ~ approx. 1 kg.
Certifications RoHS, REACH, Code of Conduct
