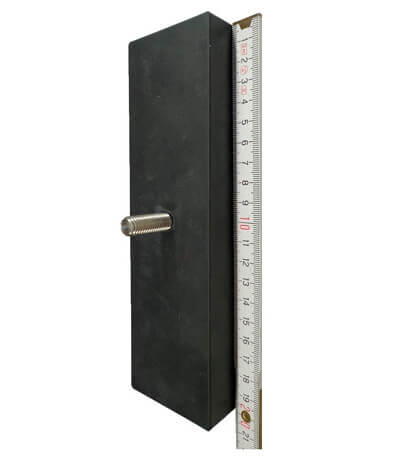

Rectangular rubber coated magnets – External thread - Stainless steel
- Extra strong
An extremely strong permanent magnet ideal for the offshore industry. Use it for fixating heavy objects up to 400 kg.
The rubber coated magnet can be used as a temporary or permanent holding device. The magnet is initially produced with a strong external thread in stainless steel, easy to mount the desired solution. It is perfect for use in wind turbine towers, on rigs, ships and other places where a strong and resistant magnet is needed for the task. The rubber coating makes sure the magnet has a slip resistant effect. That way you are sure the magnet stays and does not scratch the surface. The rubber also protects the magnet against impact and severe weather conditions (corrosion).
Please contact the sales department when larger quantity wanted.
- Extremely strong - up to 400 kg.
- High quality rubber coating
- Slip resistant
- Strong external thread
- It is possible to get a stainless steel eye nut mounted
Specifications
Magnet: Neodymium (NdFeb)
Surface: Rubber
Max temperature: 80 °C
Type: External thread / Stainless steel (A4-70 / AISI 316L)
Holding force: 10 Newton ~ approx. 1 kg.
Certifications: Code of Conduct
100,00 kr
SIZES AND VARIANTS
| Art. no. | Color | L mm | W mm | H mm | Thread mm | Newton | Kg | Price (Excl. VAT.) | Qty |
|---|---|---|---|---|---|---|---|---|---|
| 60422SS | Black | 100 | 61 | 28 | M10x26 | 1000N | 100 |
| |
| 60421SS | Black | 125 | 61 | 28 | M10x26 | 2000N | 200 |
| |
| 60420SS | Black | 201 | 61 | 28 | M10x26 | 4000N | 400 |
|
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details
With this magnet, you are able to create a moveable solution, which can easily hold 400 kg. The brick of a rubber coated magnet is the perfect solution for the offshore industry where it often is not allowed to drill in outer walls and there is a lot of humidity and other weather-difficult environments.
The rubber coating is made with a high quality product and makes sure the magnet does not corrode. It also makes the magnet slip resistant. Due to the size and execution of the magnet, it is able to hold considerably more than you would expect from a permanent magnet.
Because it is not that wide, it can even be used e.g. inside wind turbine towers, when mounted vertically, without having to think about the curved surface in the tower.
With the external thread in stainless steel, which is strong and molded into the magnet, you have a countless amount of application opportunities.
The product is produced accordingly to orders, so you have to expect longer delivery time than usual.
Do you need a larger quantity or for example an eye nut mounted onto the thread, please contact us for more information on post@larkomagnet.com or at +45 39 65 48 00.
Specifications
Specifications
| Magnet | Neodymium (NdFeb) |
|---|---|
| Surface | Rubber |
| Max temperature | 80 °C |
| Type | External thread / Stainless steel (A4-70 / AISI 316L) |
| Holding force | 10 Newton ~ approx. 1 kg. |
| Certifications | Code of Conduct |
