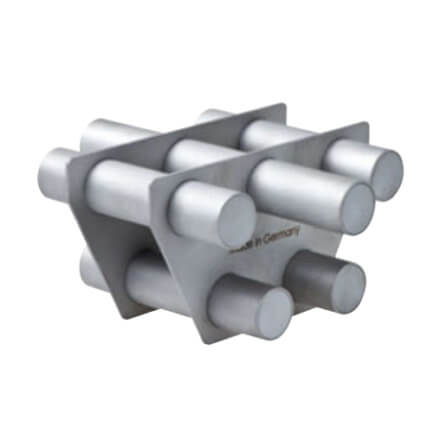

Magnetic grid - Funnel shaped 60°
- For funnel shaped systems
Magnetic grid for collecting unwanted metal particles in e.g. injection molding machines and other funnel shaped systems. The grid is made of high quality in both the stainless steel housing and the strong magnetic filter bars. It ensures a highly durable filtration magnet with minimal maintenance.
- Funnel shaped magnetic grid 60°
- Magnetic field: 30 mm
- Ideal for e.g. injection molding machines
- For dry environments as a standard
- Is produced by order
- Other variantions are possible according to requirements of: humid/wet environment, in contact with food, higher temperatures, and other dimensions
Specifications
Magnet: Neodymium / Ferrite
Surface: Stainless steel
Max temperature: 80 °C
Type: Magnetic grid - funnel shaped

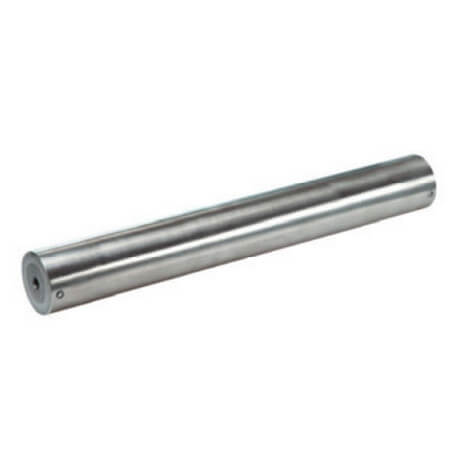

Diameter of the magnetic filter bars: 22 mm
Magnetic flux density for neodymium: 600 mT (milliTesla)
Magnetic flux density for ferrite: 130 mT (milliTesla)
Certifications: RoHS, REACH, UV resistance, Code of Conduct, SSNT 720h.
100,00 kr
SIZES AND VARIANTS
| Art. no. | L mm | W mm | H mm | No. of magnetic filter bars | Magnet | Price (Excl. VAT.) | Qty |
|---|---|---|---|---|---|---|---|
| 47600 | 130 | 145 | 75 | 5 | Neodym |
| |
| 47610 | 175 | 180 | 75 | 7 | Neodym |
| |
| 47620 | 130 | 145 | 75 | 5 | Ferrit |
| |
| 47630 | 175 | 180 | 75 | 7 | Ferrit |
|
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details
With this magnetic grid made with a funnel shape, you minimize the risk of having potential harmful metal particles further into your system. This reduces unnecessary and costly downtime on the system. Cleaining the magnetic grid is easy. You can do it either by using air pressure or by wiping it off.
Magnetic grids produced for your needs
The magnetic grid is made in a funnel shape 60° with different amounts of filter bars depending on your exact needs. If you have other requirements than our standard, e.g. higher temperatures, other environments (humid or wet) etc., you can benefit from contacting our sales department. They can help you getting the right product that suits your needs.
The magnetic flux density is measured in mT (milliTesla). 1 mT is 10 Gauss.
Contact us at +45 39654800 or at post@larkomagnet.com for more information.
The magnetic grid is also available in a round shape for pipe systems or in a square shape for square shaped applications.
Specifications
Specifications
| Magnet | Neodymium / Ferrite |
|---|---|
| Surface | Stainless steel |
| Max temperature | 80 °C |
| Type | Magnetic grid - funnel shaped |
| Diameter of the magnetic filter bars | 22 mm |
| Magnetic flux density for neodymium | 600 mT (milliTesla) |
| Magnetic flux density for ferrite | 130 mT (milliTesla) |
| Certifications | RoHS, REACH, UV resistance, Code of Conduct, SSNT 720h. |
