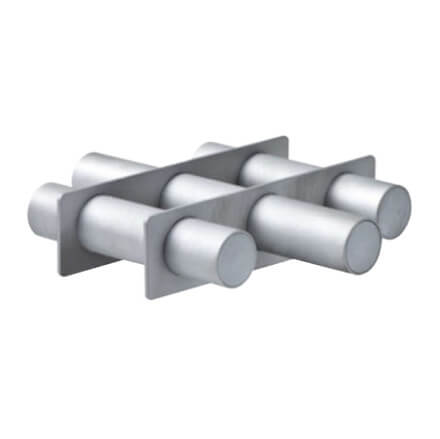

Magnetic grid – Round / Neodymium
- For pipe systems
Magnetic grid with filter bars made in a round shape suitable for all types of pipe systems and other round applications. The magnetic grid collects unwanted metal particles and granules before they end up further into the system. The grid is welded, and the housing is made of high quality stainless steel. This magnetic grid for filtration is perfect in systems where the granules are in free fall.
- For all types of pipe systems
- Long durability and minimal maintenance
- Magnetic field: 30 mm
- Made for dry environments as a standard
- Is produced by order
- Other options possible: for humid/wet environments, higher temperature requirements, in contact with food, other measures
Specifications
Magnet: Neodymium
Surface: Stainless steel
Max temperature: 80 °C
Type: Magnetic grid for pipe systems
Diameter on the magnetic filter bars: 25 mm
Magnetic flux density: 600 mT (milliTesla)
Certifications: RoHS, REACH, UV resistance, Code of Conduct, SSNT 1000h.
100,00 kr
SIZES AND VARIANTS
| Art. no. | D mm | H mm | No. of magnetic filter bars | Price (Excl. VAT.) | Qty |
|---|---|---|---|---|---|
| 47500 | 100 | 40 | 2 |
| |
| 47510 | 150 | 40 | 3 |
| |
| 47520 | 200 | 40 | 4 |
| |
| 47530 | 250 | 40 | 5 |
| |
| 47540 | 300 | 40 | 6 |
| |
| 47550 | 350 | 40 | 7 |
| |
| 47560 | 400 | 40 | 8 |
|
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details
Round shaped magnetic grid for pipe systems made with strong magnetic filter bars containing neodymium. With this type of magnetic grid, you secure your system against harmful metal granules and shavings which otherwise would have gotten further into the system. The grid collects small metal parts effectively which you can remove with ease either by air pressure or by wiping it off.
Other possible magnetic grids
The magnetic grid with filter bars is made with strong neodymium filter bars in a solid stainless steel housing. If you want to use the grid in other environments than the standard dry environment, e.g. within a humid or wet environment, in contact with food, or higher temperatures, we are able to modify the magnetic system to match your needs.
The magnetic flux density is measured in mT (milliTesla). 1 mT is 10 Gauss.
Contact us at post@larkomagnet.com or at +45 39654800 to find out what your exact requirements are.
Specifications
Specifications
| Magnet | Neodymium |
|---|---|
| Surface | Stainless steel |
| Max temperature | 80 °C |
| Type | Magnetic grid for pipe systems |
| Diameter on the magnetic filter bars | 25 mm |
| Magnetic flux density | 600 mT (milliTesla) |
| Certifications | RoHS, REACH, UV resistance, Code of Conduct, SSNT 1000h. |
