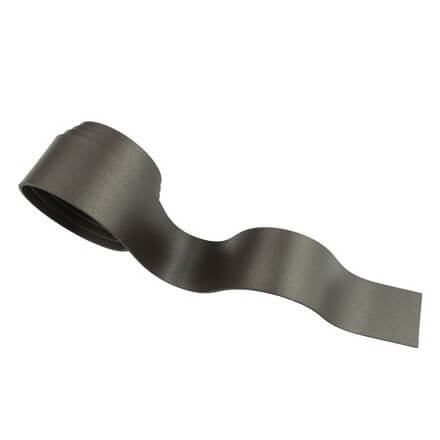

Magnetic strips – strong neodymium
With / without adhesive
Extra strong neodymium magnetic strips. Specially developed for demanding applications. Use of neodymium material ensures a very powerful magnetic effect without losing its flexible abilities. Ideal for holding applications.
- Lengths: 1, 5 and 10 meter
- Neodymium magnetic strip with extra strong magnetic force
- No laminated surface
- Magnetic strip can be shortened with utility knife / scissors
Specifications
Material: Neodymium (NdFeb)
Max temperature: 40 °C
Thickness: 1,5 mm
With / without adhesive
Strength: Extra strong (see below)
Certifications: Code of Conduct
100,00 kr
SIZES AND VARIANTS
| Art. no. | L mm | W mm | H mm | Adhesive | Holding force pr. cm2 | Price (Excl. VAT.) | Qty |
|---|---|---|---|---|---|---|---|
| 10590 | 1000 | 25 | 1,5 | No | 400 |
| |
| 10590K | 1000 | 25 | 1,5 | Yes | 400 |
| |
| 10592 | 10000 | 25 | 1,5 | No | 400 |
| |
| 10592K | 10000 | 25 | 1,5 | Yes | 400 |
| |
| 10596 | 5000 | 300 | 1.5 | No | 400 |
|
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details
This special neodymium magnetic strip differs from the more traditional types of magnetic strips due to its immense magnetic force. The neodymium magnetic strip is part of the Larko Flex series that are known for its solid quality and high flexibility. The neodymium magnetic strip is not to be compared with the “regular” magnetic strips due to the large differences in manufacturing process and magnetic material. The neodymium raw material undergoes a special manufacturing process to achieve its strong characteristic qualities. This provides the neodymium strip with a set of unique application possibilities making the product particularly useful for special holding applications.
The neodymium magnetic strip is designed for indoor use. The product has one active magnet side and no laminated surface. It is possible to produce the neodymium magnetic strip with adhesive on one side at quantities. Please contact the sales department for further information.
Holding force of the neodymium magnetic strips
The holding force of these magnetic strips is much higher than the traditional strips on the market. Thus the product is not only used for boards and storage racks but also for specific holding applications for certain products and equipment. Compared with the permanent raw magnets the strength of these products is low. Strength: 400 gram per cm2.
Dimension
The neodymium magnetic strip is produced in several different dimensions, see the complete list above. If other dimension is required, please contact our sales department for a special production according to needs and quantities. The magnetic strip is easily shortened by the customer.
Other magnetic strips
Magnetic strips are also produced of ferrite-barium and highly suitable for stock racks. See them here:
If magnetic strips with adhesive tape is needed please see these alternative magnetic tapes.
Remarks
Application of magnetic strips are not recommended at temperatures above 40 °C.
Specifications
Specifications
| Material | Neodymium (NdFeb) |
|---|---|
| Max temperature | 40 °C |
| Thickness | 1,5 mm |
| With / without adhesive | |
| Strength | Extra strong (see below) |
| Certifications | Code of Conduct |
