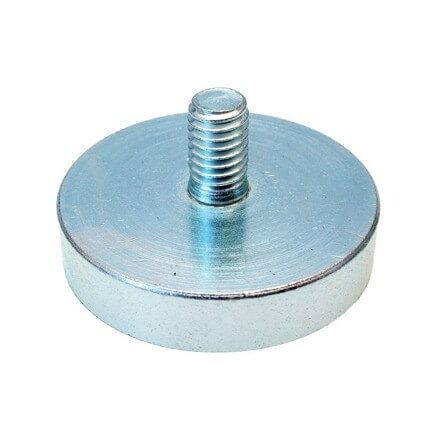

Pot magnet – neodymium – external thread
This neodymium pot magnet holds the advantage of a solid external thread and is excellent for gripping and holding applications. The strong neodymium magnet is enclosed in the protective metal pot.
- Strong holding force – up to 790 Newton (79 kilos)
- Easy adjusting and moving
- Excello pot magnets provide excellent gripping and holding possibilites
- Tolerance: + 0.4 / - 0.4 mm
- Max temperature: 80 °C
- Custom made systems can also be arranged – please ask in our technical department
Art. no. | D mm | L mm | H mm | M | Newton | Kg | Price (Excl. VAT.) | Qty |
---|---|---|---|---|---|---|---|---|
21390 | 6 | 7 | 4,5 | M3 | 5 | 0,5 |
| |
21395 | 8 | 8 | 4,5 | M4 | 13 | 1,3 |
| |
21400 | 10 | 7 | 4,5 | M3 | 25 | 2,5 |
| |
21410 | 10 | 8 | 4,5 | M4 | 25 | 2,5 |
| |
21420 | 13 | 8 | 4,5 | M5 | 60 | 6,1 |
| |
21430 | 16 | 8 | 4,5 | M6 | 95 | 9,7 |
| |
21440 | 20 | 10 | 6 | M6 | 140 | 14,3 |
| |
21450 | 25 | 10 | 7 | M6 | 200 | 20,4 |
| |
21460 | 32 | 10 | 7 | M6 | 350 | 35,7 |
| |
21470 | 40 | 12 | 8 | M8 | 670 | 68,3 |
| |
21480 | 47 | 13 | 9,2 | M8 | 790 | 80,6 |
|
Excello Pot magnets ensure a safe, effective and solid gripping function thanks to the external thread (M3-M8)
For many years, there has been a high demand for high-quality pot magnets for industrial use. The strong neodymium magnet enclosed in the metal pot provides a wide range of application possibilities.
The pot magnet forms part of Larkos quality Excello series which provide the needed certainty and approval regarding accurate magnetic force and long durability. The neodymium material is limited by its working temperatures that may not exceed 80 degrees C. If higher temperatures are needed please see our pot magnets in ferrite for reference.
Magnetic strength for pot magnets with external thread
The holding force of this neodymium pot magnet with external thread reaches up to 790 Newton as standard depending on the actual dimension. The larger the diameter, the greater the holding force. If stronger magnetic force is needed please contact our staff. The neodymium magnet belongs to the category of rare earth metals that provide the strongest permanent magnets on earth.
Dimensions
The neodymium flat pot magnet with thread comes in dimensions from D10 mm to D47 mm. If other dimensions are needed please do not hesitate to contact us.
Other pot magnets
Alternative versions of the neodymium pot magnets are available: NdFeB pot magnets with internal thread, NdFeB pot magnets with screwed bush, NdFeB pot magnets with bore / counterbore and the simple flat pot magnet.
Remarks
The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.
Material | Neodymium (NdFeb) |
---|---|
Surface | Steel body / zinc |
Tolerance | + 0.4 / - 0.4 mm |
Max temperature | 80 °C |
Type | External thread |
Thread | M3 – M8 |
10 Newton ~ approx. 1 kg. | |
Certifications | RoHS, REACH, PAC free, Code of Conduct |
