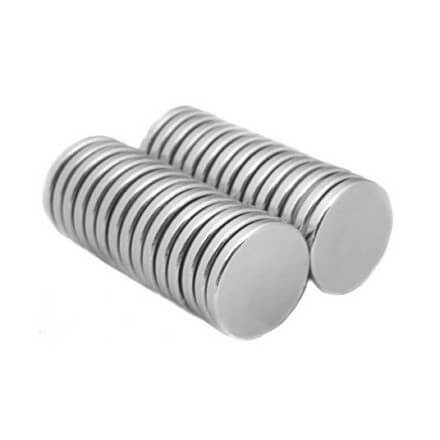

Neodymium disc magnets
- Strong round magnets
These neodymium disc magnets are exceptionally strong permanent magnets of very high quality. Neodymium disc magnets are used as industrial magnets for speakers, display systems, signs, motors, filters and as a general holding function. The neodymium material ensures strong disc magnets even at small dimensions.
- Neodymium disc magnets are magnetized axially as a standard. Please contact us if in need of magnets that are magnetized diametrically
- Quality grade N35 is our standard grade for these neodymium magnets. Please contact us if in need of other grades
- Max temperature: 80 °C.
- Tolerance +/- 0.1
Specifications
Material: Neodymium (NdFeb)
Surface: Ni-Cu-Ni
Max temperature: 80 °C
Grade: N35
Tolerance: +/- 0.1 mm
Magnetization: Axial by default
Holding force: 10 Newton ~ approx. 1 kilo
Certifications: RoHS, REACH, Code of Conduct
100,00 kr
SIZES AND VARIANTS
| Art. no. | D mm | H mm | Newton | Kg | Price (Excl. VAT.) | Qty |
|---|---|---|---|---|---|---|
| 5200 | 2 | 5 | 1 | 0,1 |
| |
| 5205 | 3 | 6 | 2 | 0,2 |
| |
| 5210 | 3 | 10 | 3 | 0,3 |
| |
| 5206 | 3 | 15 | 4 | 0,4 |
| |
| 5220 | 4 | 2 | 4 | 0,4 |
| |
| 5229 | 5 | 2 | 5 | 0,5 |
| |
| 5230 | 5 | 3 | 7 | 0,7 |
| |
| 5240 | 5 | 5 | 8 | 0,8 |
| |
| 5250 | 6 | 1,5 | 5 | 0,5 |
| |
| 5259 | 6 | 3 | 9 | 0,9 |
| |
| 5260 | 6 | 4 | 10 | 1,0 |
| |
| 5270-1 | 8 | 3 | 12 | 1,2 |
| |
| 5270 | 8 | 4 | 15 | 1,5 |
| |
| 5280 | 8 | 8 | 20 | 2 |
| |
| 5281 | 8 | 10 | 21 | 2,1 |
| |
| 5282 | 8 | 11 | 22 | 2,2 |
| |
| 5289 | 10 | 1 | 5 | 0,5 |
| |
| 5290 | 10 | 1,5 | 7 | 0,7 |
| |
| 5300 | 10 | 3 | 15 | 1,5 |
| |
| 5310 | 10 | 5 | 18 | 1,8 |
| |
| 5310-1 | 10 | 6 | 19 | 1,9 |
| |
| 5310-6 | 10 | 10 | 32 | 3,3 |
| |
| 5310-8 | 10 | 12 | 34 | 3,5 |
| |
| 5310-7 | 12 | 2 | 12 | 1,2 |
| |
| 5311 | 12 | 3 | 18 | 1,8 |
| |
| 5312-1 | 13 | 1 | 6 | 0,6 |
| |
| 5312 | 13 | 2 | 13 | 1,3 |
| |
| 5314 | 14 | 12 | 62 | 6,3 |
| |
| 5314-1 | 15 | 3 | 22 | 2,2 |
| |
| 5315 | 15 | 8 | 56 | 5,7 |
| |
| 5315-2 | 15 | 10 | 65 | 6,6 |
| |
| 5316-1 | 16 | 6 | 48 | 4,9 |
| |
| 5317 | 18 | 2 | 17 | 1,7 |
| |
| 5318 | 18 | 4 | 36 | 3,7 |
| |
| 5318-1 | 18 | 5 | 45 | 4,6 |
| |
| 5319-N | 18 | 7 | 63 | 6,4 |
| |
| 5319-2 | 20 | 3 | 30 | 3,1 |
| |
| 5319-5 | 20 | 10 | 100 | 10,2 |
| |
| 5320 | 24 | 4 | 50 | 5,1 |
| |
| 5321 | 25 | 16 | 175 | 17,8 |
| |
| 5325 | 30 | 3 | 45 | 4,6 |
|
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details
These neodymium disc magnets (also called neo magnets, NdFeb magnets, super magnets) are very strong magnets of high quality. The application for neodymium magnets is very wide and they are commonly used within the industrial sector. The rare earth material neodymium provides us with the strongest magnets possible on earth even at small dimensions.
Larkos neodymium magnets are manufactured under strict quality and environmental control. Our disc magnets are produced with a special – Ni-Cu-Ni coating to achieve strong and durable magnets.
Beside the neodymium disc magnets we also provide neodymium block magnets, neodymium ring magnets, and neodymium sphere magnets.
Remarks
Neodymium magnets can corrode in moist environments. The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.
Specifications
Specifications
| Material | Neodymium (NdFeb) |
|---|---|
| Surface | Ni-Cu-Ni |
| Max temperature | 80 °C |
| Grade | N35 |
| Tolerance | +/- 0.1 mm |
| Magnetization | Axial by default |
| Holding force | 10 Newton ~ approx. 1 kilo |
| Certifications | RoHS, REACH, Code of Conduct |
