Pot magnet – ferrite - cylinder bore

-Hole without thread

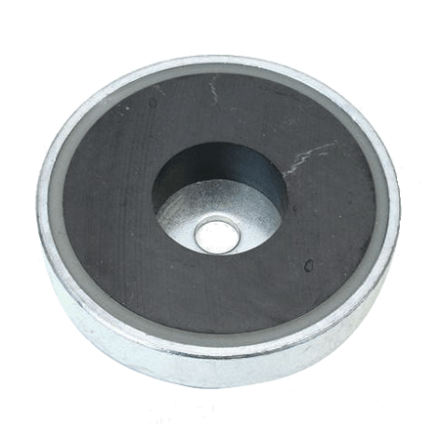

These Excello pot magnets are produced with cylinder bore. A solid ferrite magnet is enclosed in the the metal pot and provides the great magnetic force. The pot magnet with cylinder bore is typically for industrial applications where the demands for strength, temperature and durability are high.



  • With cylinder bore
  • Magnetic strength up to 680 Newton (approx. 68 kilos)
  • Tolerance: +0.5 / -0.2
  • Max temperature: 200 °C
Specifications
Material: Ferrit
Surface: Steel body / Zinc
Tolerance: + 0.5/ - 0.2 mm
Max temperature: 200 °C
Type: Cylinder bore
Holding force: 10 Newton ~ approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
SIZES AND VARIANTS
Art. no.Ø mmH mmø1ø2NewtonKgPrice (Excl. VAT.)Qty
2082050108,52218018,4
  • €3.93 from 1 pc.
  • €3.33 from 10 pcs.
  • €2.90 from 100 pcs.
  • €2.17 from 1000 pcs.
2083057116,52423023,5
  • €4.27 from 1 pc.
  • €3.60 from 10 pcs.
  • €3.17 from 100 pcs.
  • €2.43 from 1000 pcs.
2084063146,52429029,6
  • €5.07 from 1 pc.
  • €4.40 from 10 pcs.
  • €3.73 from 100 pcs.
  • €3.30 from 1000 pcs.
2086080186,511,554055,1
  • €8.13 from 1 pc.
  • €7.46 from 10 pcs.
  • €6.80 from 100 pcs.
  • €5.93 from 1000 pcs.
20870831810,53260061,2
  • €8.60 from 1 pc.
  • €7.93 from 10 pcs.
  • €7.26 from 100 pcs.
  • €6.40 from 1000 pcs.
208801002210,53468069,3
  • €20.13 from 1 pc.
  • €18.50 from 10 pcs.
  • €17.30 from 100 pcs.
  • €15.57 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

This ferrite pot magnet is solely produced by high-quality materials in both magnet and metal. The pot magnet forms part of our Excello series that provides certainty regarding durability and accurate magnetic strength.



As for the ferrite material only high quality and ”clean” raw material is used. The metal cap is galvanized and equipped with a cylinder bore making the pot very easy to mount. The magnet lays well protected inside the metal cap and the metal itself contributes to the overall magnetic strength of the pot magnet.



Magnetic strength for the ferrite pot magnet

The magnet provides great holding force thanks to the overall grade of the raw material. The pot magnet reaches up to 680 newton depending on the dimension in question.



Dimension

The ferrite pot magnet with cylinder bore is produced in several dimensions. Please see the product overview for actual prices and specifications.



Other Excello models

The magnet is also produced as ferrite pot magnet with internal thread, pot magnet in ferrite with screwed bush, pot magnets in ferrite with external thread as well as models in stainless steel. Please contact our technical department if special requirements.



Remarks

*The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrit
Surface Steel body / Zinc
Tolerance + 0.5/ - 0.2 mm
Max temperature 200 °C
Type Cylinder bore
Holding force 10 Newton ~ approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
