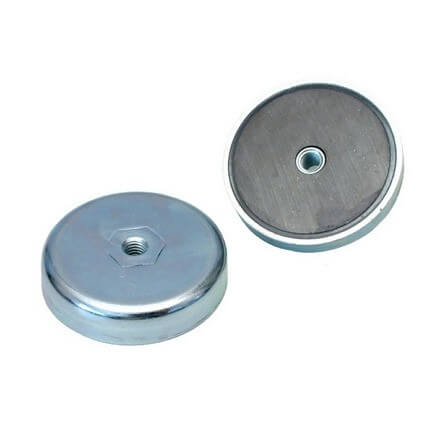

Pot magnets – ferrite – internal thread

- Several screw dimensions

These Excello pot magnets are produced with internal thread and a ferrite magnet is used to provide the magnetic force. The pot magnet is ideal for holding and gripping applications within the industrial areas. Thanks to the ferrite material the magnet easily operates under very high working temperatures.



  • Pot magnet with internal thread has excellent gripping and holding abilities
  • Different screw dimensions possible
  • Stainless steel model also available – please ask in our technical department
  • Tolerance: +0.5 / - 0.2
  • Max temperature: 200 °C
Watch product video lazyloadlazyload
Specifications
Material: Ferrite
Surface: Stålkappe / Zink
Tolerance: + 0.5 / - 0.2
Max temperature: 200 °C
Type: Internal thread
Thread: M4 – M10
10 Newton ~ approx. 1 kg.
Certifications: RoHS, REACH, PAC free, Code of Conduct
100,00 kr
SIZES AND VARIANTS
Art. no.Ø D mmH mmMNewtonKgPrice (Excl. VAT.)Qty
21200257M4363,7
  • €3.00 from 1 pc.
  • €2.50 from 10 pcs.
  • €2.03 from 100 pcs.
  • €1.50 from 1000 pcs.
21210327M4757,6
  • €3.07 from 1 pc.
  • €2.60 from 10 pcs.
  • €2.13 from 100 pcs.
  • €1.60 from 1000 pcs.
21220408M4909,2
  • €3.47 from 1 pc.
  • €2.93 from 10 pcs.
  • €2.40 from 100 pcs.
  • €1.90 from 1000 pcs.
212305010M617017,3
  • €3.60 from 1 pc.
  • €3.07 from 10 pcs.
  • €2.60 from 100 pcs.
  • €2.17 from 1000 pcs.
212405010M817017,3
  • €4.07 from 1 pc.
  • €3.47 from 10 pcs.
  • €3.07 from 100 pcs.
  • €2.47 from 1000 pcs.
212506314M829029,6
  • €5.33 from 1 pc.
  • €4.67 from 10 pcs.
  • €4.13 from 100 pcs.
  • €3.67 from 1000 pcs.
212608018M855056,1
  • €7.73 from 1 pc.
  • €6.80 from 10 pcs.
  • €6.17 from 100 pcs.
  • €5.60 from 1000 pcs.
212708018M1055056,1
  • €7.73 from 1 pc.
  • €6.80 from 10 pcs.
  • €6.17 from 100 pcs.
  • €5.60 from 1000 pcs.
Always 500000 magnets on stock as minimum
More than 20 years of experience. Custom-made magnets according to your needs
Certified magnets acc. to ROHS, REACH, EN71:3, Code of Conduct
Order before 2:00PM and we ship the same day
Need another dimension or magnet strength?
We develop individual magnet solutions for any need
Call +45 39 65 48 00
Or send us a message
Technical details
Product Description
Details

These ferrite pot magnets with internal thread has a unique set of qualities making these products particularly useful for industrial purposes. The pot magnets form part of our Excello quality series which provides the necessary certainty regarding accurate magnetic strength and long durability.



The pot magnet is characterized by having a strong ferrite magnet enclosed in a solid metal pot. Only one side of the pot magnet has an active magnetic surface whilst the other side is equipped with a thread. The metal pot provides protection for the ferrite magnet and it also increases the overall holding force of the product.



Magnetic strength for the pot magnet

The holding force is very high for these pot magnets with internal thread and depends on the dimension in question. As a standard the magnetic strength reaches up to 550 Newton. See the complete list of products above. If in need of a stronger pot magnet please do not hesitate to contact our technical department for a custom-made arrangement.



Dimensions

Ferrite pot magnets with internal thread is produced in several dimensions and with different thread. See the product overview.



Other pot magnets

The pot magnets are produced in many different models depending on the demands for magnetic force, dimension and threading. Please see the ferrite pot magnet with external threadferrite pot magnets with screwed bush and the ferrite pot magnets with cylinder bore.

We also make some of the types with a stainless steel pot.

Please ask in our sales department if further information is required.



Remarks

The holding forces have been determined at room temperature on a polished plate made of steel ( S235JR according to DIN 10 025) with a thickness of 10 mm by pulling the magnet vertically from the surface (1kg~10N). A deviation of -10 % (max.) in the stated values is possible in exceptional cases. In general, the value will be exceeded.

Specifications
Specifications
Material Ferrite
Surface Stålkappe / Zink
Tolerance + 0.5 / - 0.2
Max temperature 200 °C
Type Internal thread
Thread M4 – M10
10 Newton ~ approx. 1 kg.
Certifications RoHS, REACH, PAC free, Code of Conduct
